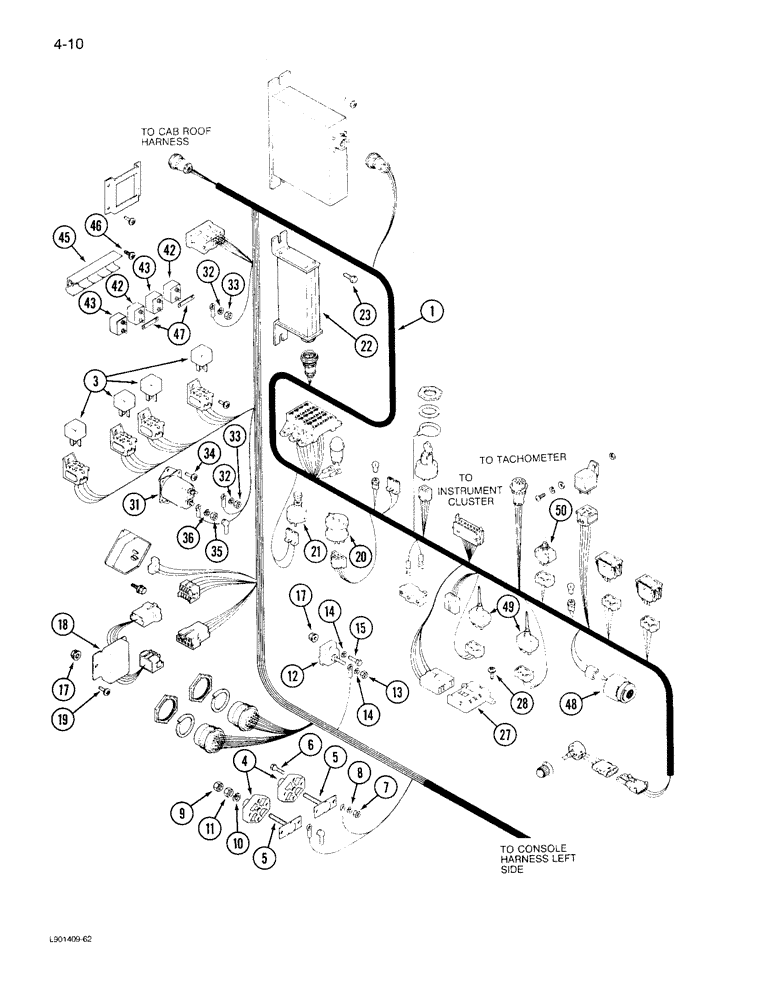

Запчасти Case IH 1844 (4-10) - CONSOLE HARNESS RIGHT SIDE (06) - ELECTRICAL SYSTEMS

1

1983631C1

HARNESS

ASSEMBLY - console (Shown) (See note A)

1шт.

1

91812C6

HARNESS

ASSEMBLY - console (See note B)

1шт.

3

146461C1

RELAY

- lights (Alternate with 3221235R2)

4шт.

3

3221235R2

RELAY

- lights (Alternate with 146461C1)

4шт.

4

468647C1

BLOCK ASSY.

BLOCK - power and ground junction

2шт.

5

1964561C1

BAR

- junction block buss

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

12шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

2шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

120377

NUT,3/8" - 16, Gr 5

2шт.

12

245539C1

CONNECTION

BLOCK - junction, clean ground

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head, no. 10-24 x 3/4 inch

1шт.

17

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, no. 10-24

3шт.

18

187609C1

RECTIFIER

ASSEMBLY - diode

1шт.

19

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

2шт.

19

159947

HYD CONNECTOR

- pan head, no. 10-24 x 3/4 inch

1шт.

20

107200C2

LIGHT SWITCH

SWITCH - light

1шт.

21

121705C91

SWITCH

- instrument light dimmer

1шт.

22

1983637C1

CASE

CONTROL - engine R.P.M.

1шт.

23

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer, 1/4 NC x 1/2 inch

2шт.

27

121770C2

TRANSMITTER

MODULE - low coolant

1шт.

28

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan head self tapping, no. 8-18 x 1/2 inch

2шт.

31

107655C1

SOLENOID SWITCH

SWITCH - magnetic console

1шт.

32

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

33

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

34

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - tap, 1/4 x 1/2 inch

2шт.

35

120376

NUT,5/16"-18, G5

2шт.

36

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

2шт.

43

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

2шт.

45

245870C1

BRACKET

- circuit breaker

1шт.

46

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

47

245860C1

BAR

- circuit breaker

2шт.

48

245854C1

BUZZER

- alarm

1шт.

49

121541C1

SWITCH

- drum control

2шт.

50

1301521C1

SWITCH

- drum lockout

1шт.
