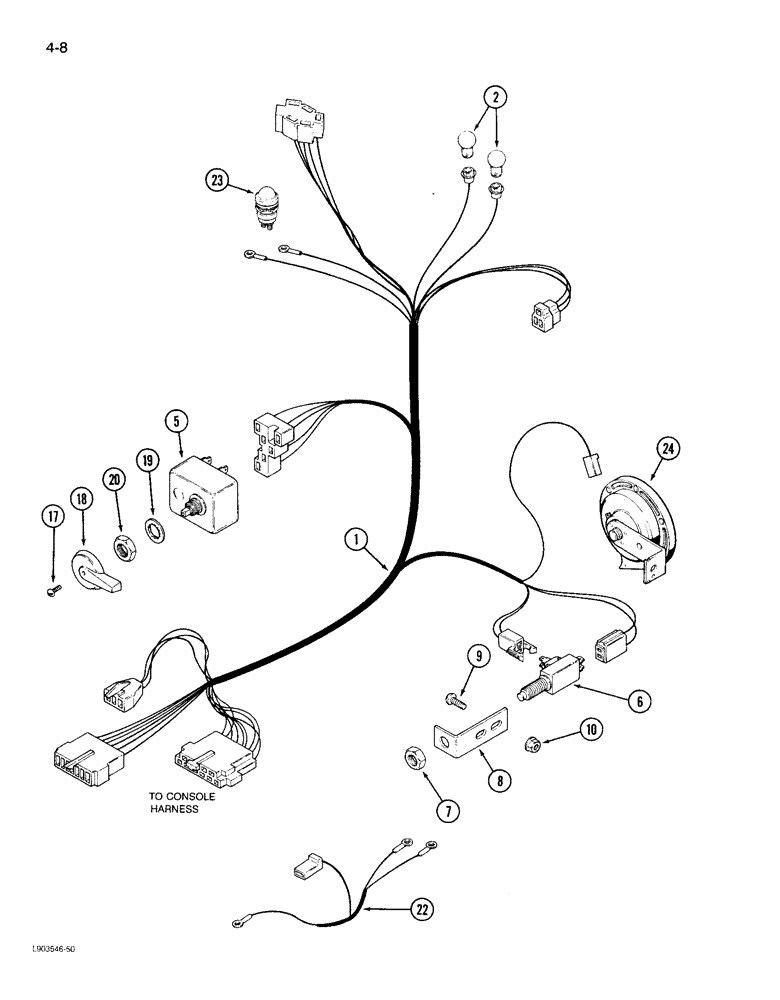

Запчасти Case IH 1844 (4-08) - STEERING COLUMN HARNESS (06) - ELECTRICAL SYSTEMS

1

91822C3

HARNESS

ASSEMBLY - steering column

1шт.

2

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

2шт.

5

131209C91

SWITCH

- turn signal (Alternate with 131066C91)

1шт.

5

131066C91

SWITCH

- turn signal (Alternate with 131209C91)

1шт.

6

131107C1

SWITCH

- neutral start

1шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2 inch NF

2шт.

8

1327674C1

BRACKET

ANGLE - switch mounting

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch

2шт.

71485C1

PACKAGE

KNOB KIT - turn signal switch

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - slotted

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - switch

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

22

1964933C1

HARNESS

ASSEMBLY - horn

1шт.

23

453453C1

SWITCH

ASSEMBLY - horn

1шт.

24

166166R1

HORN

- alert

1шт.
