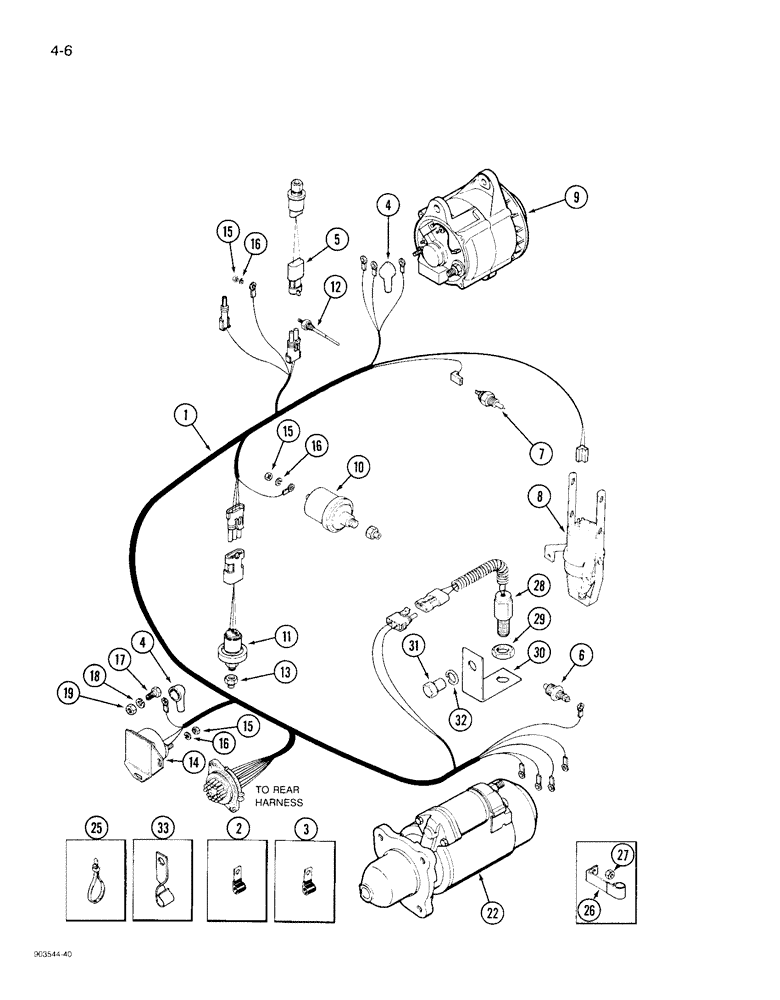

Запчасти Case IH 1844 (4-06) - ENGINE HARNESS, 1844 COTTON PICKER (06) - ELECTRICAL SYSTEMS

1

1983384C1

HARNESS

ASSEMBLY - engine (P.I.N. JJC0002560 and after)

1шт.

1

1964970C4

HARNESS

ASSEMBLY - engine (Prior to P.I.N. JJC0002560)

1шт.

2

A185958

CLAMP,7/8", 1/2" Bolt

- harness, 7/8 inch

1шт.

3

362123R1

CLIP

- engine harness

3шт.

4

399470R1

BOOT

- cable

3шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, compressor

1шт.

6

121756C2

SENSOR

SWITCH - coolant temperature

1шт.

7

1964924C1

SWITCH

- coolant, light and alarm

1шт.

8

REF

INSTRUCTION

SOLENOID - ether injection (See page 2-81)

1шт.

9

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See page 4-51)

1шт.

10

1341330C1

TRANSMITTER

SWITCH - sender, oil pressure (Replaces 1-2227T2)

1шт.

11

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.

12

A145513

SENSOR

SWITCH - probe, coolant level

1шт.

13

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 1/2 to 3/4 inch PT

1шт.

14

A39079

SOLENOID

- starter (Replaces 121613C1)

1шт.

15

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

17

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See page 4-53)

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

26

370383R1

CLIP

- harness, long

1шт.

27

825-1408

NUT,M8, Cl 8

1шт.

28

1252494C2

TRANSMITTER

SWITCH - probe, engine RPM

1шт.

29

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

1шт.

30

1338650C2

SUPPORT

- pickup, RPM

1шт.

31

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

2шт.

32

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

269980R1

CLIP

- engine harness center

1шт.
