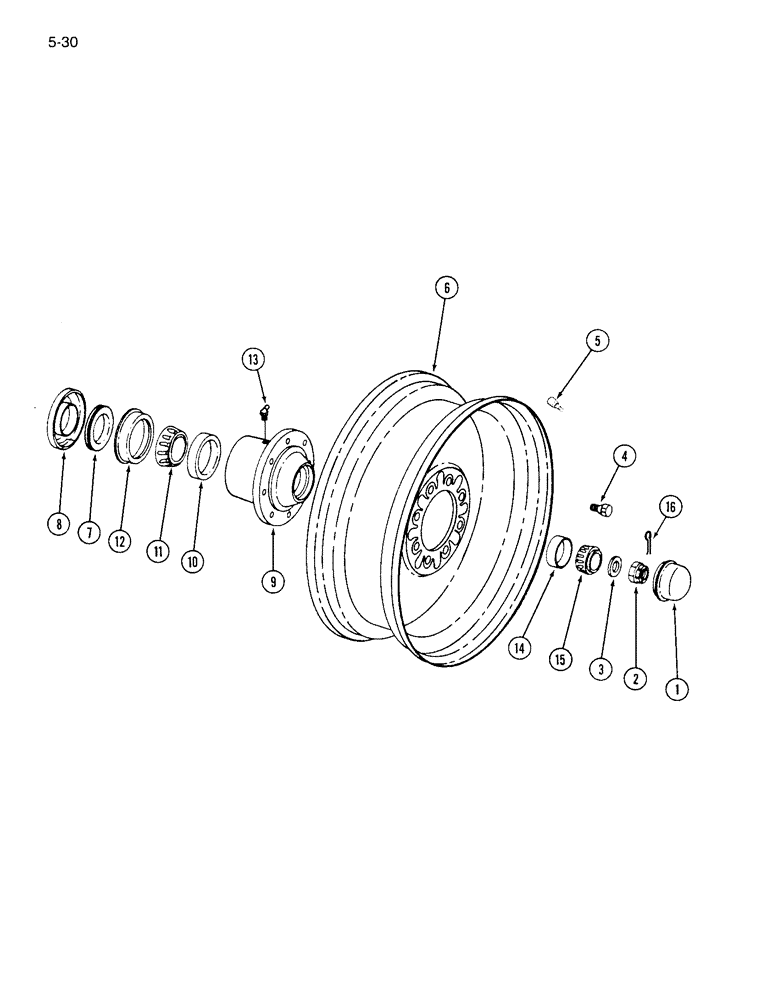

Запчасти Case IH 1844 (5-30) - REAR STEER WHEEL AND HUB, 1844 COTTON PICKER (04) - STEERING

1

189425C1

HUB CAP

CAP - wheel hub

2шт.

2

1259683C1

NUT

- hex slotted

2шт.

3

30181R1

WASHER,M30 x 56.5 x 5, HT

- flat, 33 x 56 x 5 mm

2шт.

4

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- wheel mounting

16шт.

5

179482C1

VALVE STEM

- inflating

2шт.

6

188759C2

RIM

WHEEL - 24 x W10 guide

2шт.

7

491641C1

SEAL

- wheel hub

2шт.

8

1259522C1

SHIELD

- wheel dust

2шт.

9

1259528C1

HUB

ASSEMBLY - wheel

2шт.

10

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

CUP - bearing, inner

1шт.

11

ST753B

BEARING ASSY,66.67mm ID x 22mm W

CONE - bearing, inner, 2-5/8 inch ID

1шт.

12

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

WASHER - hub seal cup

1шт.

13

19700R91

FITTING

- 45 degree lube, 3/16 inch

1шт.

14

ST987

BEARING CUP

CUP - bearing, outer

1шт.

15

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE - bearing, outer

1шт.

16

934868R1

COTTER PIN,M6.3 x 50

PIN - cotter, 6 x 50 mm

2шт.
