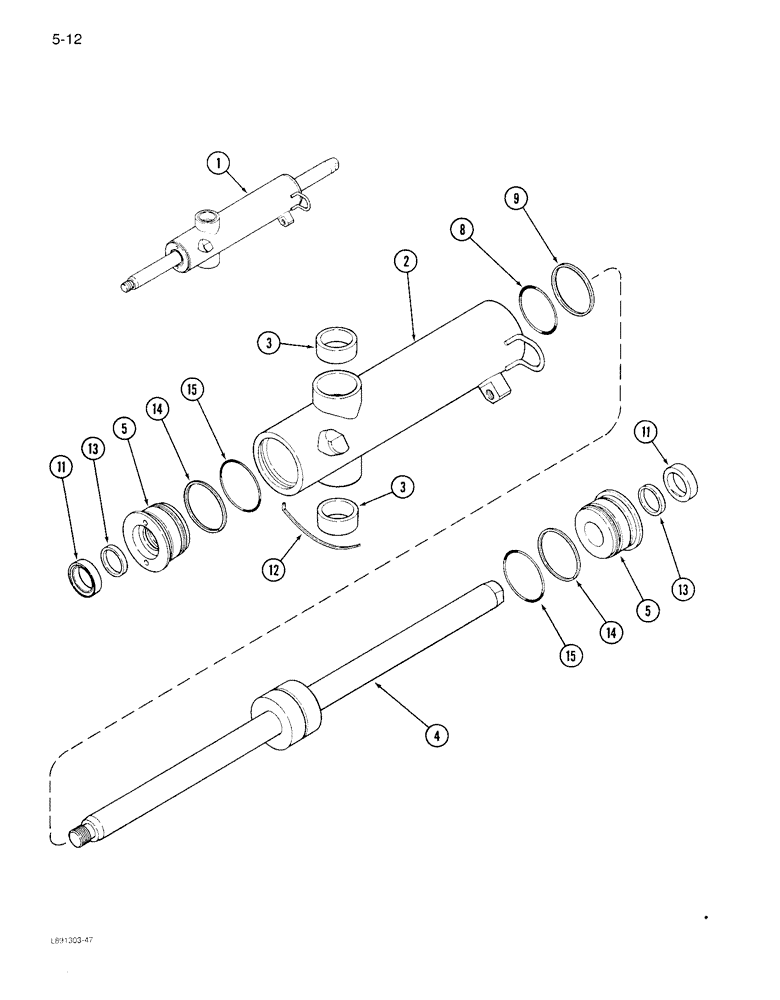

Запчасти Case IH 1844 (5-12) - POWER STEERING CYLINDER, 1844 COTTON PICKER (04) - STEERING

1

1255300C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - power steering

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

1255304C1

BUSHING

- trunnion

2шт.

4

1255306C1

ROD

ASSEMBLY - piston

1шт.

5

1255310C1

HEAD (CYLINDER)

HEAD - cylinder

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 2-3/16 x 2-3/8 inch

1шт.

Part of cylinder seal kit P/N 80448C1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston ring

1шт.

Part of cylinder seal kit P/N 80448C1

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

2шт.

Part of cylinder seal kit P/N 80448C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - head retainer

2шт.

Part of cylinder seal kit P/N 80448C1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

2шт.

Part of cylinder seal kit P/N 80448C1

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - o-ring back-up

2шт.

Part of cylinder seal kit P/N 80448C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 2-7/16 x 2-5/8 inch

2шт.

Part of cylinder seal kit P/N 80448C1

1шт.

80448C1

GASKET KIT

SEAL KIT - cylinder, Includes Refs. 8, 9, 11, 12, 13, 14 and 15

1шт.
