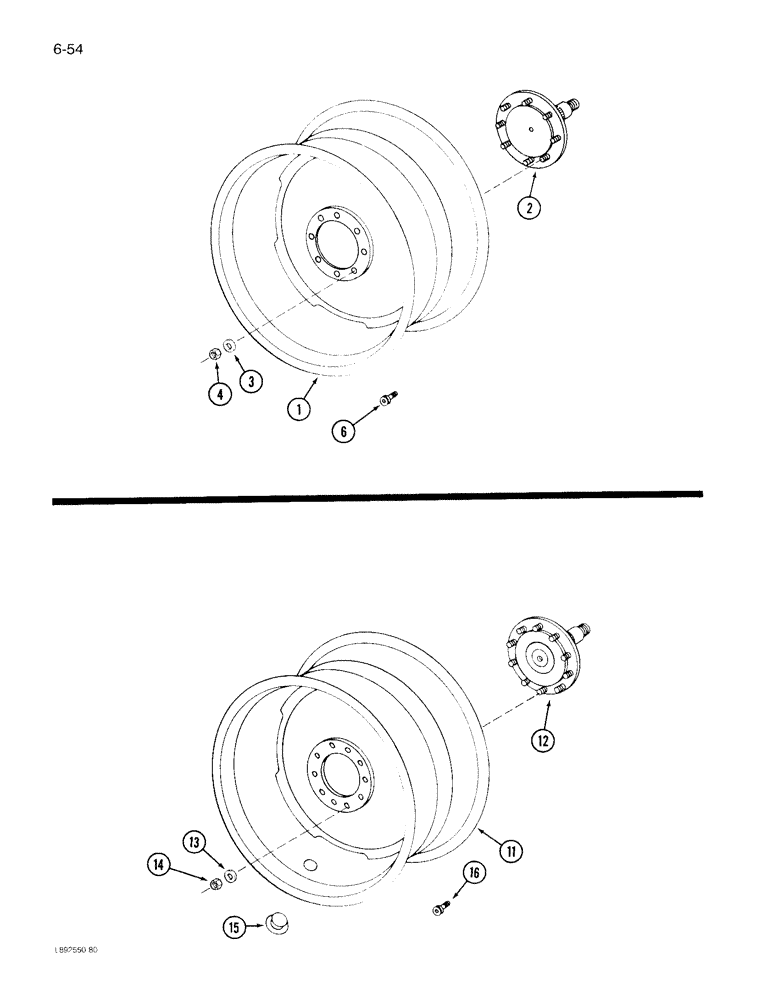

Запчасти Case IH 1844 (6-54) - DRIVE WHEEL, 1822 COTTON PICKER (03) - POWER TRAIN

1

1278318C1

WHEEL

- drive (See Note A)

2шт.

1

86969C1

RIM

WHEEL - drive (See Note B)

2шт.

2

REF

INSTRUCTION

SHAFT - final drive (See Page 6-51)

2шт.

3

25548R1

WASHER

- flat, hardened

16шт.

6

179482C1

VALVE STEM

VALVE - inflation

2шт.

11

1278317C1

WHEEL

- drive (See Note C), 1844 cotton picker

2шт.

11

86927C1

WHEEL

- drive (See Note D), 1844 cotton picker

2шт.

4

426639

PLUG

- hex, 3/4 inch NF, Grade 8

16шт.

12

REF

INSTRUCTION

SHAFT - final drive (See Page 6-53), 1844 cotton picker

2шт.

13

25548R1

WASHER

- flat, hardened, 1844 cotton picker

20шт.

14

429-112

- hex, 3/4 inch NF, Grade 8, 1844 cotton picker

20шт.

15

417194C1

PLUG

- wheel, 1844 cotton picker

2шт.

16

179482C1

VALVE STEM

VALVE - inflation, 1844 cotton picker

2шт.
