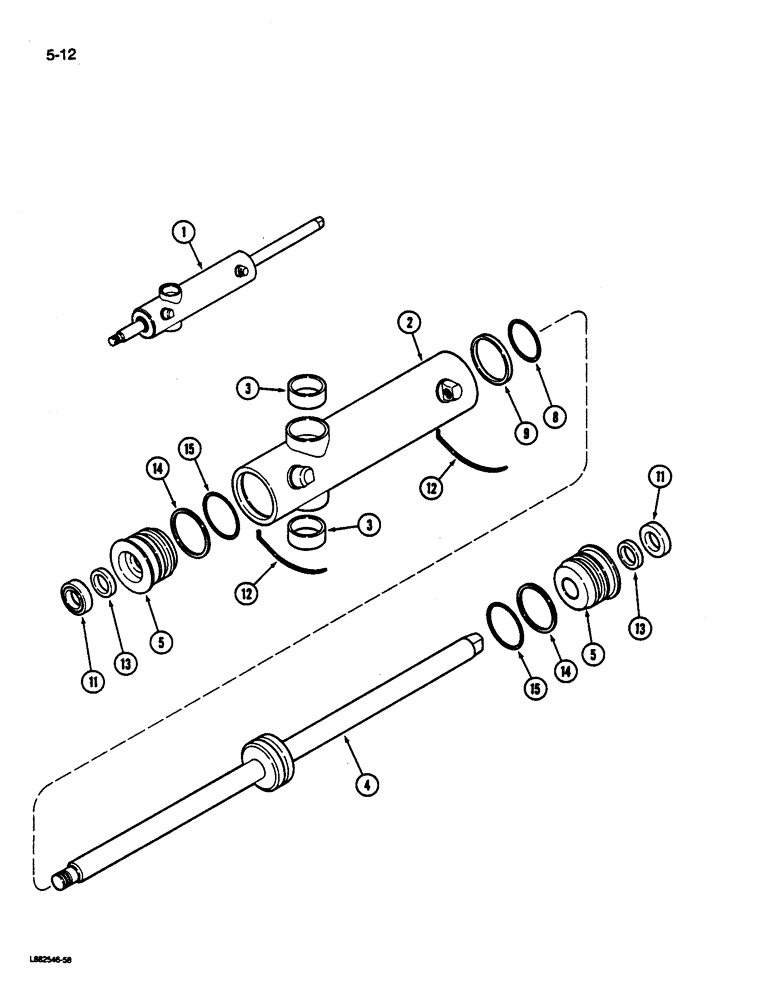

Запчасти Case IH 1822 (5-12) - POWER STEERING CYLINDER, 1822 COTTON PICKER (04) - STEERING

1

63864C93

CYLINDER,25.4mm Rod, 203.2mm Stroke

ASSEMBLY - power steering

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

533283R1

BUSHING,38.16mm ID x 41.41mm OD x 10.99mm L

- trunnion

2шт.

4

533286R21

ROD

ASSEMBLY - piston

1шт.

5

533288R2

JACK HEAD

HEAD - cylinder

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 2 x 2-1/4 inch, Class 5

1шт.

Part of package seal kit P/N 80446C91

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston ring

1шт.

Part of package seal kit P/N 80446C91

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

2шт.

Part of package seal kit P/N 80446C91

1шт.

12

NSS

NOT SOLD SEPARAT

RING - head retainer

2шт.

Part of package seal kit P/N 80446C91

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

2шт.

Part of package seal kit P/N 80446C91

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - o-ring back-up

2шт.

Part of package seal kit P/N 80446C91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 2-3/16 x 2-3/8 inch

2шт.

Part of package seal kit P/N 80446C91

1шт.

80446C91

PACKAGE

KIT - seal, replaces 80446C1, Includes: Ref. 8, 9, 11,12, 13, 14 and 15

1шт.
