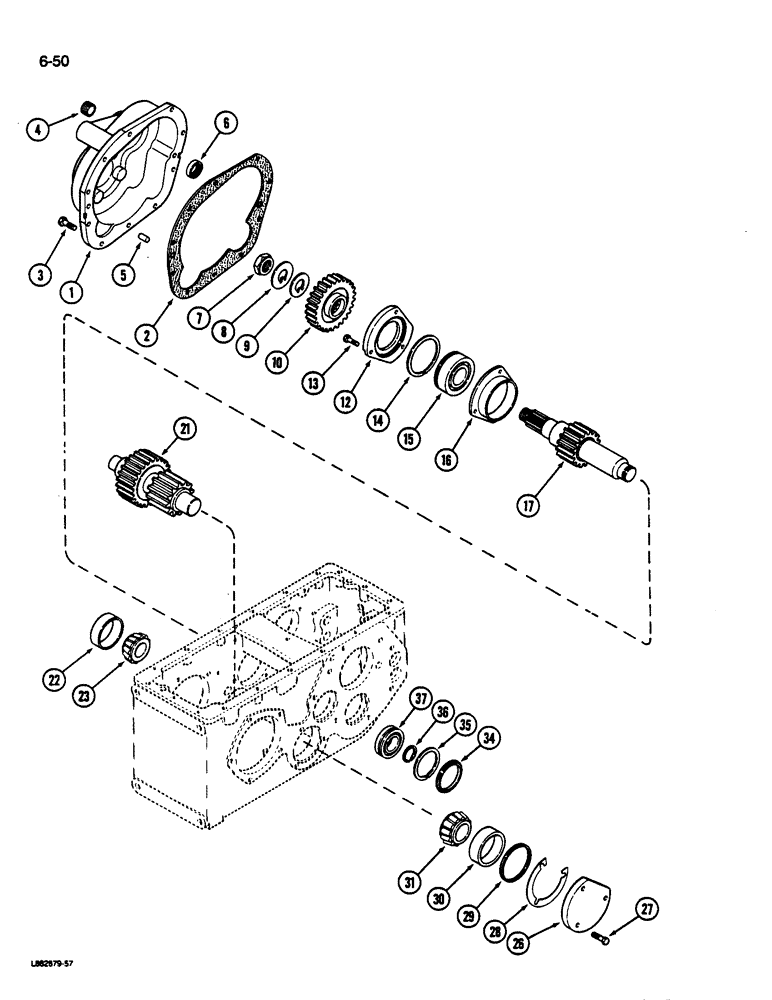

Запчасти Case IH 1822 (6-50) - TRANS. INTERMEDIATE SHAFT, 1822 CTTN PICKER PIN JJC0012001 AND 1844 CTTN PICKER JJC0002001 AND AFT (03) - POWER TRAIN

1963918C1

TRANSMISSION

ASSEMBLY - cotton picker, 1822

1шт.

Transmission assembly includes all items on Page 6-48, 6-50 and 6-52, except for items as indicated.

1шт.

1963922C1

TRANSMISSION

ASSEMBLY - cotton picker, 1844

1шт.

Transmission assembly includes all items on Page 6-48, 6-50 and 6-52, except for items as indicated.

1шт.

1

1963903C1

COVER

- gear

1шт.

2

573997R2

GASKET

- cover

1шт.

3

27347R1

BOLT,Hex, 3/8" - 16 x 1 1/8" , Gr 8

- hex, 3/8 NC x 1-1/8 inch, Grade 8

12шт.

4

1963920C1

PLUG

- magnetic, 3/4 inch PT

1шт.

5

30346R1

DOWEL,M10 x 20

PIN - dowel, 10 x 20 mm

2шт.

6

1963913C1

SEAL

- gear cover

1шт.

7

382879R1

NUT

- hex, shaft

1шт.

8

382900R1

LOCK WASHER

- lock

1шт.

9

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- shaft

1шт.

10

395646R1

GEAR

- change, 30 tooth (1822 Cotton Picker)

1шт.

10

184099C1

GEAR

- change, 28 tooth (1844 Cotton Picker)

1шт.

12

395645R1

RETAINER

- cage

1шт.

13

27970R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

- hex, 5/16 NC x 7/8 inch, Grade 8

3шт.

14

ST419

RING

- retaining snap

1шт.

15

395643R91

BEARING, ROLLER, CYL,40mm ID x 80mm OD x 30.1mm W

- shaft, right

1шт.

16

395644R2

NEEDLE BEARING CAGE

CAGE - bearing, right

1шт.

17

107300C1

SHAFT

- intermediate

1шт.

21

1963899C1

GEAR

- pinion shatt, 13 and 23 tooth

1шт.

22

1968312C1

BEARING, CUP,69.875 mm OD x 19.101 mm

CUP - bearing pinion shatt, left

1шт.

23

1968311C1

ROLLER BEARING,33.35 mm ID x 25.408 mm

CONE - bearing pinion shatt, lett

1шт.

26

1963901C1

CAP

- shatt

1шт.

27

27347R1

BOLT,Hex, 3/8" - 16 x 1 1/8" , Gr 8

- hex, 3/8 NC x 1-1/8 inch, Grade 8

3шт.

28

1963962C1

BLOCK

SHIM - bearing, 0.003 inch

1шт.

28

1963963C1

BLOCK

SHIM - bearing, 0.007 inch

1шт.

29

368012R1

SEAL

RING - seal

1шт.

30

536986R1

BEARING CUP,80.192 mm OD x 23.863 mm

CUP bearing pinion shatt, right

1шт.

31

1968310C1

ROLLER BEARING,39.701 mm ID x 30.441 mm

CONE - bearing pinion shaft, right

1шт.

34

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

- seal

1шт.

35

ST421

SNAP RING,1.65mm Thk, Ext

RING - shaft retaining

1шт.

36

370504R1

RING

- retaining snap

1шт.

37

1963917C1

ROLLER BEARING,29.9 mm ID x 61.9 mm OD x 16.07 mm

- shatt, left, 2-7/16 inch OD

1шт.
