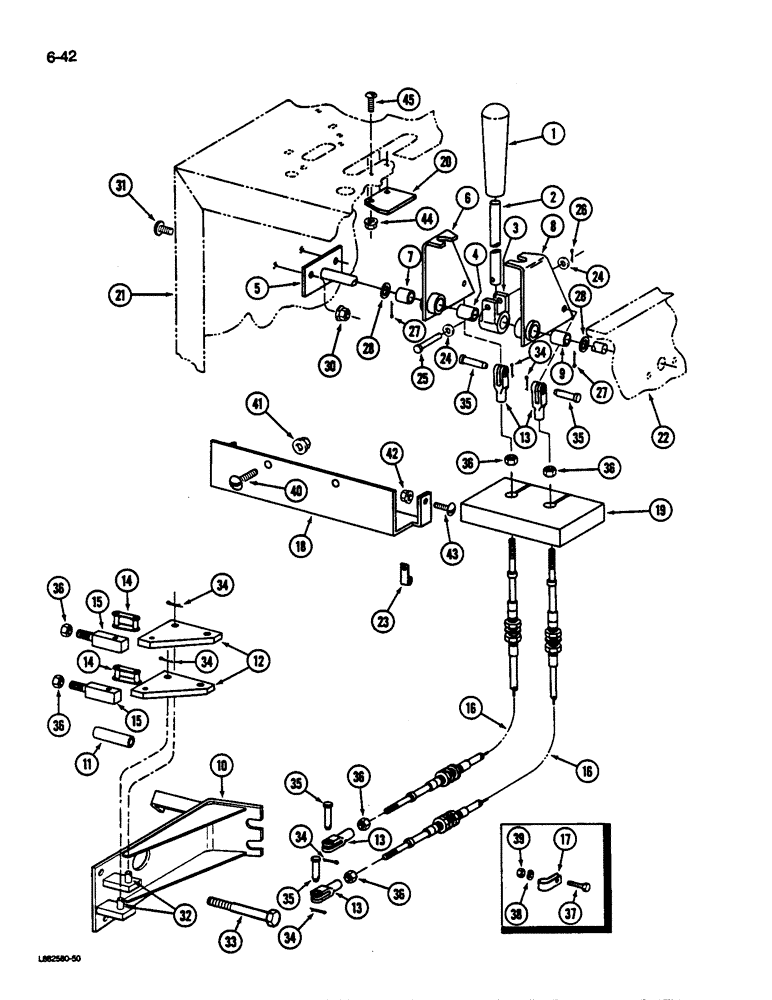

Запчасти Case IH 1822 (6-42) - TRANSMISSION SHIFT CONTROLS (03) - POWER TRAIN

1

157473C1

KNOB

HANDLE - gear shift lever

1шт.

2

1278662C1

STEM

ROD - transmission shift

1шт.

3

157360C11

ARM

PIVOT ASSEMBLY - gear shift

1шт.

4

568920R1

BUSHING

- gear shift pivot

1шт.

5

1278661C1

SHAFT

ASSEMBLY - gear shift

1шт.

6

1278666C91

ARM ASSY.

ARM ASSEMBLY - transmission shift left

1шт.

7

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- shift arm

1шт.

8

1278667C91

ARM ASSY.

ARM ASSEMBLY - transmission shift right

1шт.

9

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- gear shift arm

2шт.

10

1963959C1

SECTOR

- shifter plate (Replaces 221439C1)

1шт.

11

1963957C1

SPACER

- tube, 5/8 x 3 inch (Replaces 573174R1)

2шт.

12

221444C2

LARGE PLATE

PLATE - shifter rail

2шт.

13

144242

CLEVIS

- cable (Replaces 104037)

4шт.

14

587368R91

CHAIN LINK

LINK - connecting

2шт.

15

1963964C1

BOLT

- bar (Replaces 221443C1)

2шт.

16

1329381C1

CABLE

- shifter (Replaces 672861R91)

2шт.

17

98959R1

CLAMP

- 7/16 inch diameter

2шт.

18

1278663C3

SUPPORT

- transmission cable

1шт.

19

1278719C1

SEAL

- transmission cables

1шт.

20

195239C2

BAR

- H pattern filler

1шт.

21

REF

INSTRUCTION

SUPPORT - left console rear (See Page 9-233)

1шт.

22

REF

INSTRUCTION

SUPPORT - manual rear (See Page 9-233)

1шт.

23

358986R1

CABLE CLIP

CLIP - cable

4шт.

24

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

25

Q1191

HEADED PIN,5/16" x 1 1/2"

PIN - headed, 5/16 x 1-1/2 inch

1шт.

26

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

27

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

28

21782R1

WASHER

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

2шт.

31

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.

32

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

33

28769R1

BOLT,Hex, 3/8" - 16 x 5 1/4", Gr 8

- hex, 3/8 x 4-1/2 inch, Grade 8

2шт.

33

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 x 1-1/4 inch, Grade 8

1шт.

34

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

35

121741

FENDER

PIN - clevis, 5/16 x 15/16 inch

4шт.

36

124920

JAM NUT,Jam, 5/16"-24, G5

6шт.

37

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

40

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

2шт.

41

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

2шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

4шт.

43

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

4шт.

44

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

2шт.

45

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted, 1/4 NC x 1/2 inch

2шт.
