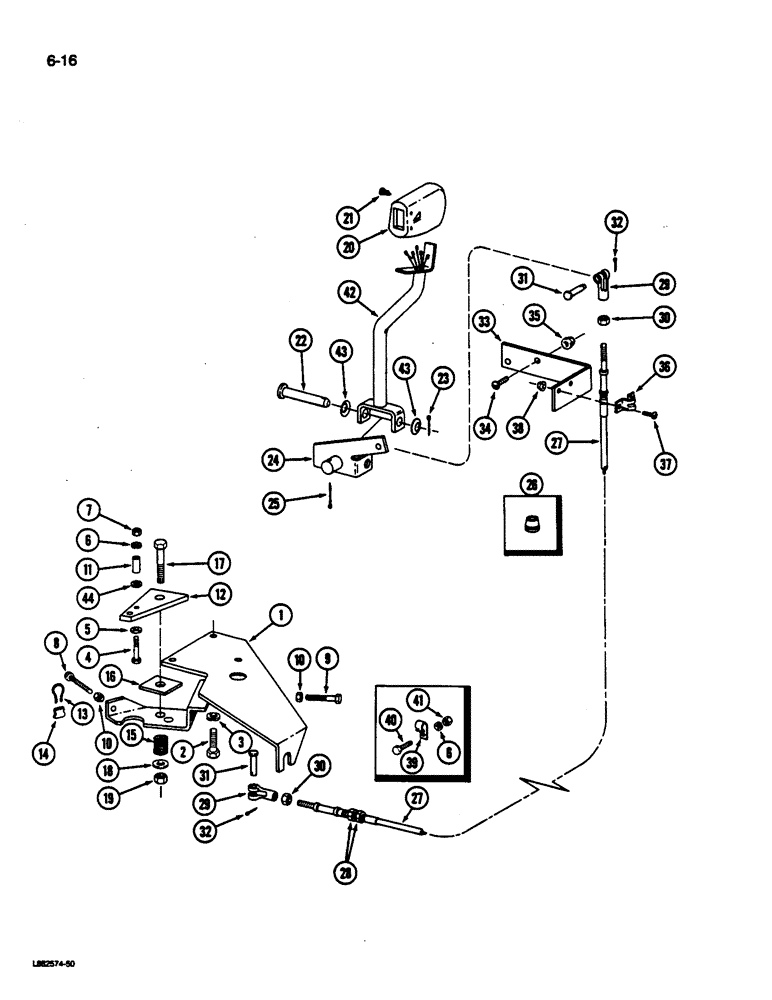

Запчасти Case IH 1822 (6-16) - PROPULSION CONTROLS,1822 COTTON PICKER (03) - POWER TRAIN

1

221559C1

SUPPORT

- cable

1шт.

2

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch

3шт.

3

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

4

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

5

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex, 1/4 inch NC

1шт.

8

219618C2

BOLT

BOLT - hex drilled, 5/16 NC x 2-1/4 inch

1шт.

9

368163C1

BOLT,Spcl, Hex, 5/16" - 18 x 2 3/4"

BOLT - hex special, 5/16 NC x 2-3/4 inch

1шт.

10

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

1шт.

11

U13039

SPACER

- pipe

1шт.

12

219716C1

BAR

LEVER - pump

1шт.

13

678026C1

ELECTRICAL WIRE

WIRE - lock

1шт.

14

678027C1

SEAL

- lock

1шт.

15

M74376

SPRING

1шт.

16

674599R2

FRICTION WASHER

- special

1шт.

17

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

18

178375R1

WASHER

- flat, 25/32 x 1-1/8 x 3/64 inch

1шт.

19

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

1шт.

20

1301180C92

HANDLE

- control

1шт.

21

28002R1

HEX SOC SCREW,#6 - 32 x 1/2"

SCREW - tapping, No. 6 x 1/2 inch

3шт.

22

28258R1

CLEVIS PIN,1/2" x 3 7/16'"

PIN - clevis, 1/2 x 3-7/16 inch

1шт.

23

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

24

1267441C1

SUPPORT ASSY.

SUPPORT - lever

1шт.

25

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

26

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- cable

1шт.

27

1329384C1

CABLE

- control

1шт.

28

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

29

144242

CLEVIS

- cable

2шт.

30

129-122

NUT,5/16"-24, G5

2шт.

31

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

32

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

33

193281C1

ANGLE

- cable mounting

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

2шт.

35

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

2шт.

36

195593C1

CLAMP

- cable

1шт.

37

937875R1

SCREW,Serr, 1/4" - 20

- slotted, 1/4 NC x 3/4 inch

2шт.

38

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

2шт.

39

98959R1

CLAMP

- cable

1шт.

40

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

41

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

42

245981C1

COVER

LEVER - propulsion

1шт.

43

366613R1

SPRING

- tension

2шт.

44

25707R1

WASHER,.281" x 5/8" x .075", HDN

- hardened flat

2шт.
