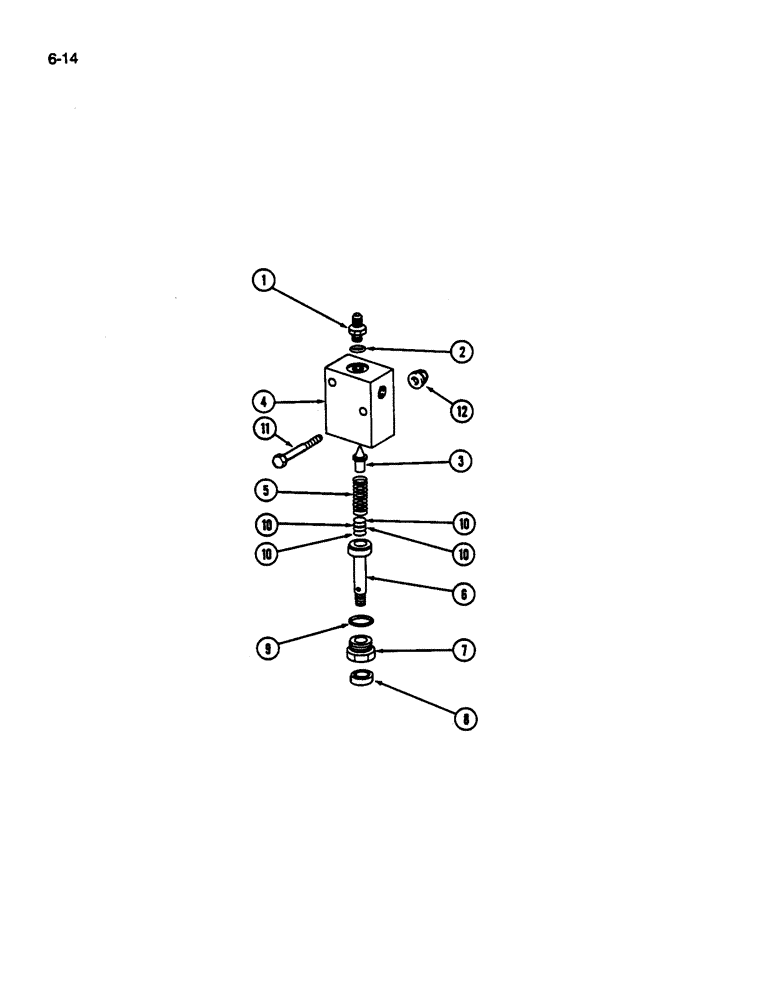

Запчасти Case IH 1822 (6-14) - FOOT-N-INCH VALVE (03) - POWER TRAIN

398705R91

VALVE

ASSEMBLY - foot-n-inch

1шт.

1

398709R1

SEAT

- poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

398710R1

VALVE POPPET

VALVE - poppet

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve (Order 398705R91)

1шт.

5

398731R1

SPRING

- valve

1шт.

6

398708R1

STOP

- valve

1шт.

7

398707R1

GUIDE

- valve spring stop

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - relief valve (Order 530575R91 kit)

1шт.

11

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

530575R91

SHIM KIT

KIT - relief valve shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

1шт.
