Запчасти Case IH 1822 (3-12) - INJECTION NOZZLE, DT466C DIESEL ENGINE (02) - FUEL SYSTEM

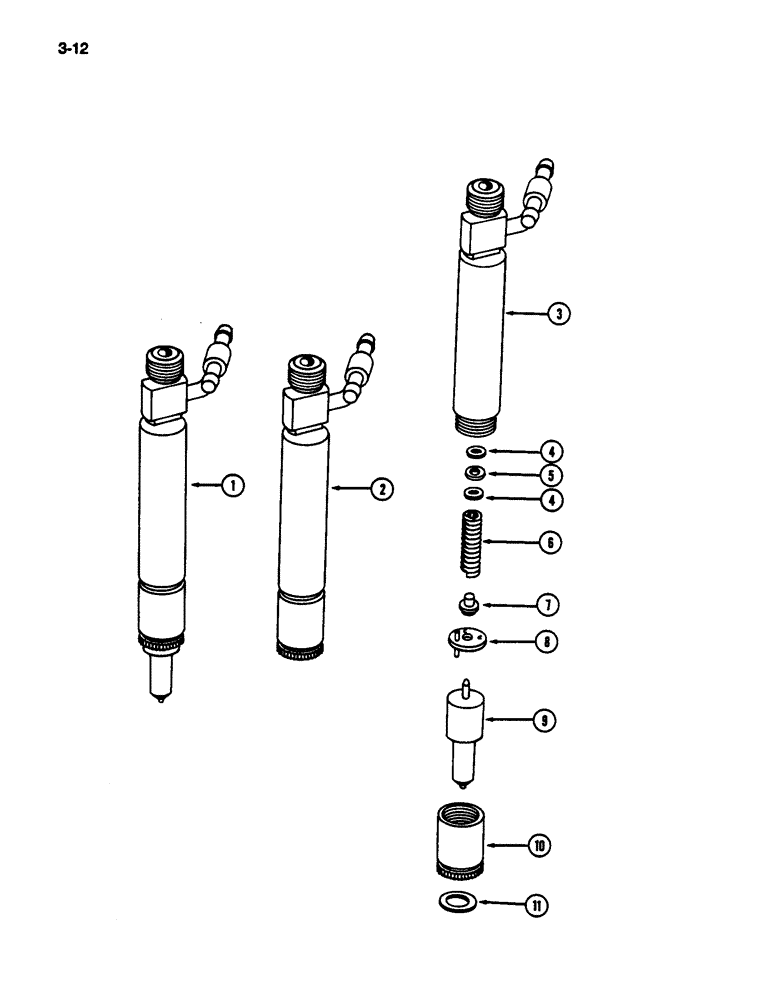

Схема запчастей Case IH 1822 - (3-12) - INJECTION NOZZLE, DT466C DIESEL ENGINE (02) - FUEL SYSTEM
8
2
9
3
4
6
7
5
11
10
1
4

Артикул

Название

Примечание

Количество

1

687372C91

NOZZLE INJECTION

NOZZLE-HOLDER ASSEMBLY - injection, new

6шт.

1

749945C91

REMAN-FUEL INJECTOR

NOZZLE HOLDER ASSEMBLY - injection, remanufactured

6шт.

1

1934157C1

CORE-FUEL INJECTOR

Return Number, injection nozzle

6шт.

2

1802395C91

HOLDER

HOLDER ASSEMBLY - injection nozzle

1шт.

3

680413C1

BODY

BODY - nozzle holder

6шт.

4

680414C1

SPACER

SPACER - nozzle

12шт.

5

680415C1

SPACER

SPACER - spring adjusting 0.002 inch

1шт.

5

680416C1

SPACER

SPACER - spring adjusting 0.007 inch (Not included in 1802395C91 - order separate)

1шт.

5

680418C1

SPACER

SPACER - spring adjusting 0.010 inch (Not included in 1802395C91 - order separate)

1шт.

5

680419C1

SPACER

SPACER - spring adjusting 0.025 inch (Not included in 1802395C91 - order separate)

1шт.

5

680420C1

SPACER

SPACER - spring adjusting 0.375 inch (Not included in 18023895C91 - order separate)

1шт.

5

680421C1

SPACER

SPACER - spring adjusting 0.028 inch (Not included in 1802395C91 - order separate)

1шт.

5

680422C1

SPACER

SPACER - spring adjusting 0.030 inch (Not included in 1802395C91 - order separate)

1шт.

5

680423C1

SPACER

SPACER - spring adjusting 0.035 inch (Not included in 1802395C91 - order separate)

1шт.

6

680424C1

SPRING

SPRING - pressure adjusting

1шт.

7

680433C1

GUIDE

GUIDE - spring seat

1шт.

8

680434C1

SPACER

SPACER - valve stop

1шт.

9

687400C1

NOZZLE CAP

NOZZLE TIP ASSEMBLY

1шт.

10

680435C1

NUT

NUT - nozzle cap

1шт.

11

675477C1

GASKET

GASKET - nozzle

1шт.

Выбрано товаров: 20
