Запчасти Case IH 1822 (3-08) - FUEL INJECTION SYSTEM AND PUMP, DT466C DIESEL ENGINE (02) - FUEL SYSTEM

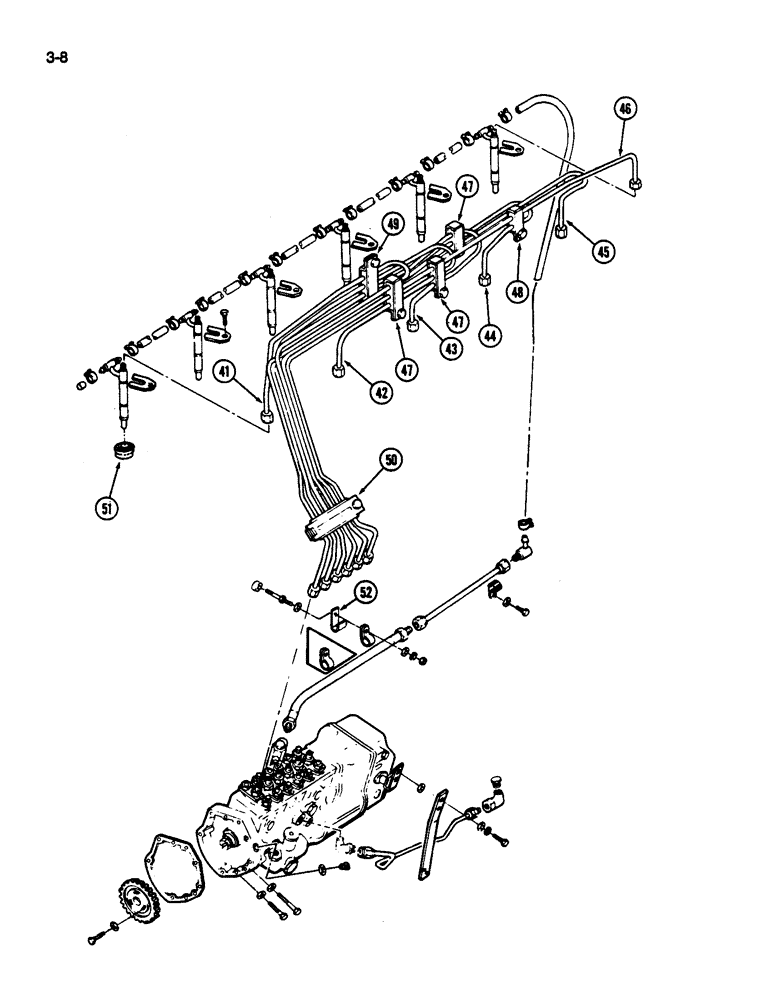

Схема запчастей Case IH 1822 - (3-08) - FUEL INJECTION SYSTEM AND PUMP, DT466C DIESEL ENGINE (02) - FUEL SYSTEM
49
52
46
47
48
45
43
41
47
50
42
47
44
51

Артикул

Название

Примечание

Количество

41

1802951C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 1

1шт.

42

1802952C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 2

1шт.

43

1802953C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 3

1шт.

44

1802954C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 4

1шт.

45

1802955C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 5

1шт.

46

1802956C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 6

1шт.

47

1802959C91

CLAMP

ASSEMBLY - injection pipe, 3 pipe

3шт.

48

1802796C91

CLAMP

ASSEMBLY - injection pipe, 2 pipe

1шт.

49

1802800C91

CLAMP

ASSEMBLY - injection pipe, 5 pipe

1шт.

50

1802947C91

CLAMP

ASSEMBLY - injection pipe, 6 pipe

1шт.

51

682810C1

RING

GROMMET - injection dust cover

6шт.

52

1808311C1

CLIP

- cable

1шт.

Выбрано товаров: 12
