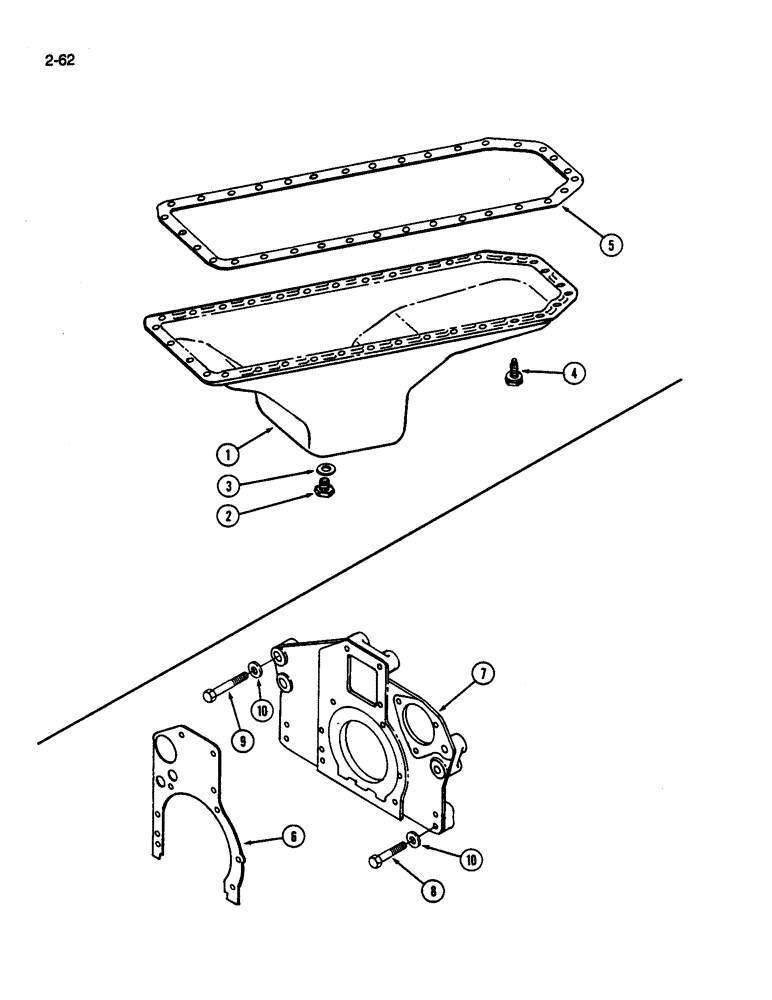

Запчасти Case IH 1822 (2-62) - OIL PAN, ENGINE REAR MOUNTING PLATE, DT466C DIESEL ENGINE (01) - ENGINE

1

1806454C91

PAN

ASSEMBLY - oil

1шт.

2

393671C2

PLUG

- drain

1шт.

3

393670C1

GASKET

- drain plug

1шт.

4

677490C1

SCREW

WITH CONICAL WASHER - oil pan

34шт.

5

1806579C1

GASKET

- oil pan

1шт.

6

682945C1

GASKET

- rear mounting plate

1шт.

7

1800782C1

LARGE PLATE

PLATE - engine rear mounting

1шт.

8

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 2 inch, Grade 8

6шт.

9

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

2шт.

10

26273R1

WASHER

- hardened, 17/32 x 1-1/16 x 1/64 inch

8шт.
