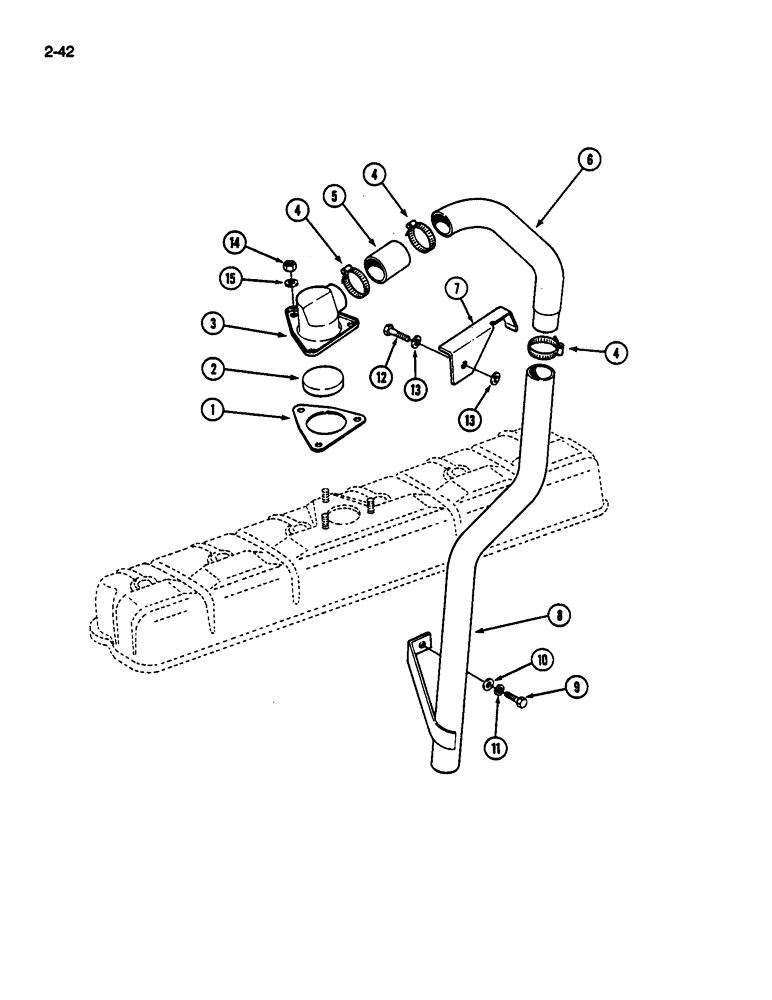

Запчасти Case IH 1822 (2-42) - ENGINE BREATHER HOUSING, DT466C DIESEL ENGINE (01) - ENGINE

1

673973C4

GASKET

- breather housing

1шт.

2

690233C1

FILTER, ELEMENT

ELEMENT - breather

1шт.

3

1800150C1

BODY

HOUSING - breather

1шт.

4

995219R1

CLIP

CLAMP - hose

3шт.

5

690460C1

HOSE

Breather Tube

1шт.

6

691700C1

TUBE

- upper breather

1шт.

7

691699C1

SUPPORT

- breather tube

1шт.

8

1808255C1

VENTILATION PIPE

TUBE - lower breather

1шт.

9

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, Grade 8

1шт.

10

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened, 5/16 inch

1шт.

11

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

13

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- hardened, 5/8 inch

2шт.

14

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

3шт.

15

691644C1

RUBBER WASHER

- rubber bonded, 5/16 inch

3шт.
