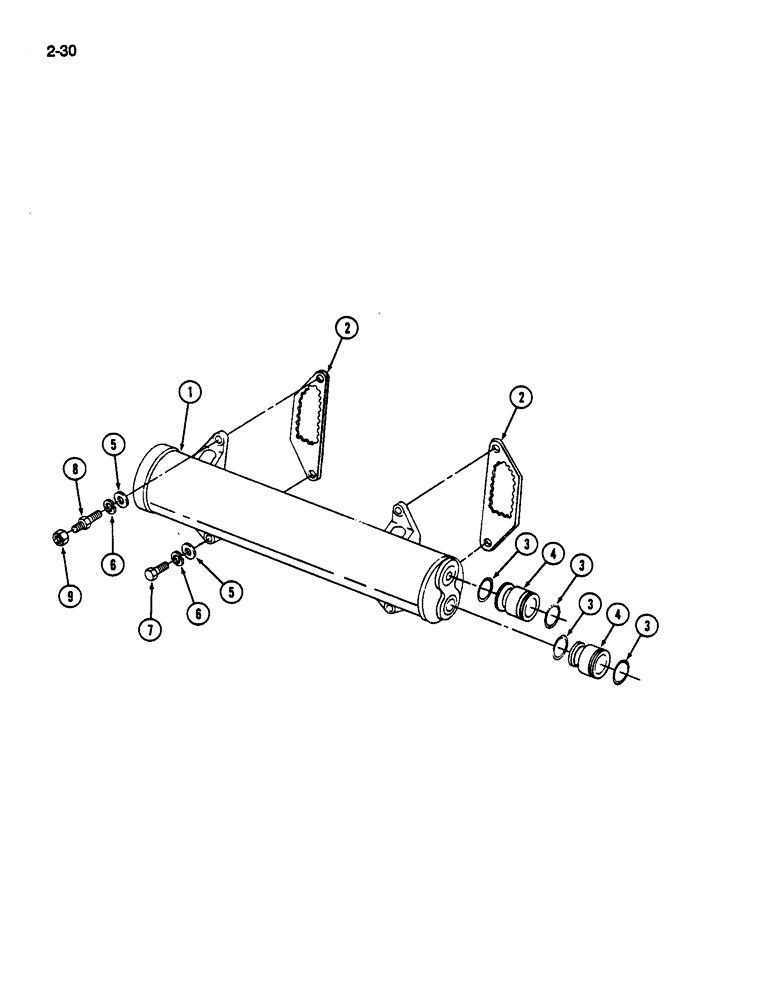

Запчасти Case IH 1822 (2-30) - OIL COOLER, D466 AND GREATER THAN 1DT466C DIESEL ENGINE (01) - ENGINE

1

1810171C1

COOLER, OIL

COOLER ASSEMBLY - oil (Replaces 690884C2)

1шт.

1

735260C92

REMAN-OIL COOLER

1822 & 1844 w/Navistar Engine

1шт.

1

1938223C1

CORE-OIL COOLER

Return number

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

O-RING - 1-1/4 x 1-1/2 x 1/8 inch

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover

2шт.

REF#4 -COOLER TUBE HAD OPTIONAL DESIGNS

1шт.

SEAMLESS 1 1/2" O.D. AND WITH-SEAM 1 1/4"

1шт.

BOTH OKAY PER NAVISTAR 7/22/96

1шт.

5

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER - flat, 13/32 x 13/16 x 3/32 inch

4шт.

6

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

8

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - upper, 3/8-16 x 3/8-24

1шт.

9

25523R1

NUT,3/8"-24, G8

NUT - 3/8 inch NF, Grade 8

1шт.

1810568C1

PLATE

SPACER - oil cooler

1шт.

21254R1

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - 1/2 ID x 3/32 inch wide

1шт.

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL - 1-1/4 ID x 3/32 inch wide

1шт.

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

BOLT - hex, 5/16 NC x 1-3/4 inch

1шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

WASHER - hardened flat, 11/32 x 11/16 x 3/32 inch

1шт.
