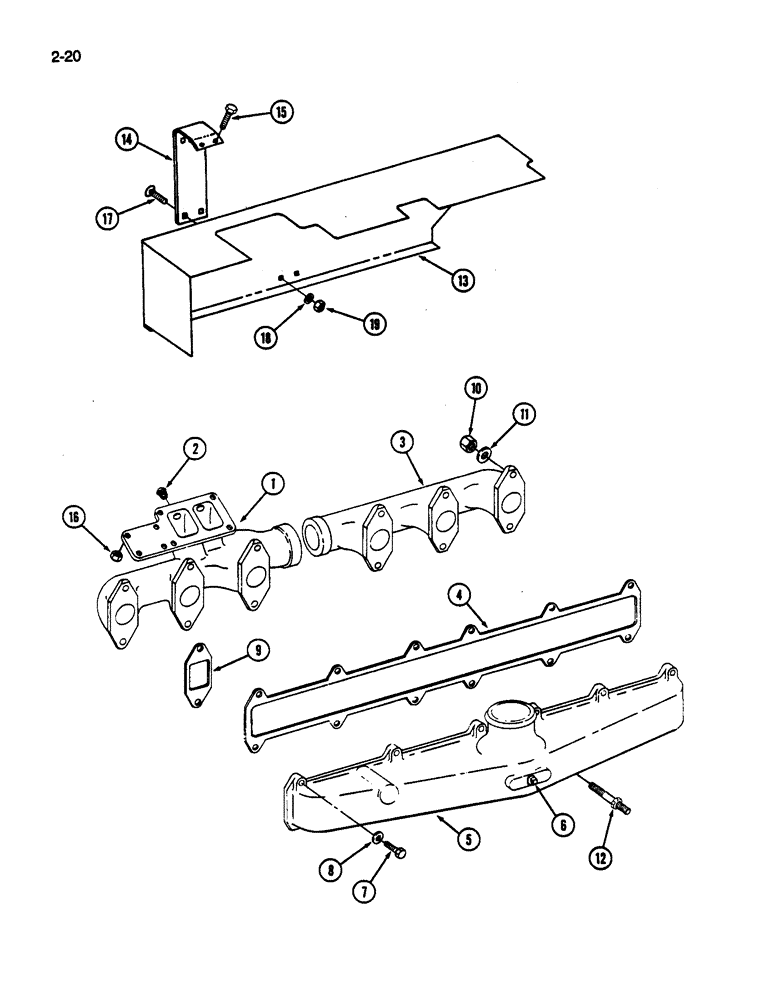

Запчасти Case IH 1822 (2-20) - INTAKE AND EXHAUST MANIFOLD, DT466C DIESEL (01) - ENGINE

1

691595C91

MANIFOLD

- exhaust, front

1шт.

2

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27

2шт.

3

675779C3

MANIFOLD

- exhaust, rear

1шт.

4

682199C1

MANIFOLD GASKET

- intake manifold

1шт.

5

691161C91

MANIFOLD

- intake

1шт.

6

9617020

PLUG,1/4" - 18 x 0.48"

- Hex Socket pipe, 1/4-18

1шт.

7

26679R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, Grade 8

11шт.

8

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 5/64 inch

11шт.

9

688928C1

MANIFOLD GASKET

- exhaust manifold

6шт.

10

682987C1

NUT

- hex, 7/16-20

12шт.

11

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 51/64 x 1/8 inch

12шт.

12

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

BOLT - manifold stud, 5/16-18 x 5/16-24

1шт.

13

1329337C2

SHIELD

ASSEMBLY - exhaust manifold

1шт.

14

1329340C1

BAR

- shield support

1шт.

15

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

16

9413979

LOCK NUT,3/8"-16, GC

NUT - prevailing torque hex, 3/8 inch NC, Grade 8

2шт.

17

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

18

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

120377

NUT,3/8" - 16, Gr 5

4шт.
