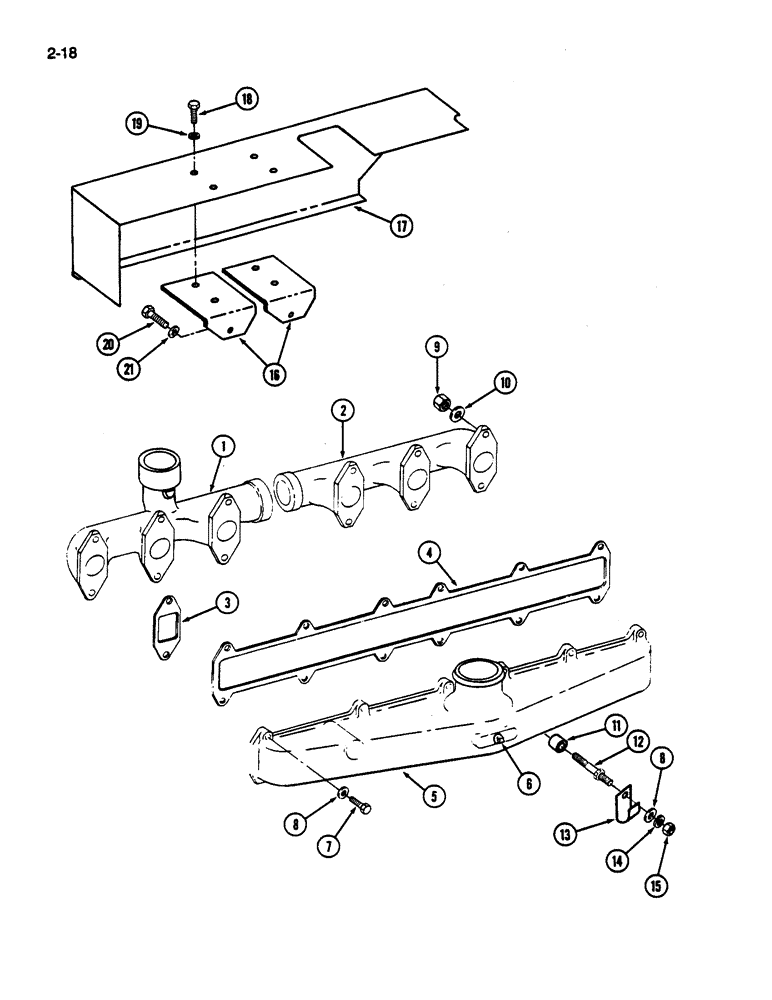

Запчасти Case IH 1822 (2-18) - INTAKE AND EXHAUST MANIFOLD, D466 DIESEL (01) - ENGINE

1

675778C2

MANIFOLD

- exhaust, front

1шт.

2

675779C3

MANIFOLD

- exhaust, rear

1шт.

3

688928C1

MANIFOLD GASKET

- exhaust manifold

6шт.

4

682199C1

MANIFOLD GASKET

- intake manifold

1шт.

5

675633C91

MANIFOLD

- intake

1шт.

6

9617020

PLUG,1/4" - 18 x 0.48"

- Hex Socket pipe, 1/4-18

1шт.

7

26679R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

- 5/16 NC x 1-1/4 inch, Grade 8

11шт.

8

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 5/64 inch

12шт.

9

682987C1

NUT

- hex, 7/16-20

12шт.

10

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 27/32 x 1/8 inch

12шт.

11

86224H

SPACER,1/4" Pipe x 3/8"

1шт.

12

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

BOLT - manifold stud, 5/16-18 x 5/16-24

1шт.

13

1808311C1

CLIP

- cable

1шт.

14

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

25521R1

NUT,5/16"-24, G8

NUI - hex, 5/16 inch NF, Grade 8

1шт.

16

1329364C1

BRACKET

ASSEMBLY - exhaust shield

2шт.

17

1329362C2

SHIELD

ASSEMBLY - exhaust manifold

1шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

19

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, Grade 8

2шт.

21

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 3/16 inch

2шт.
