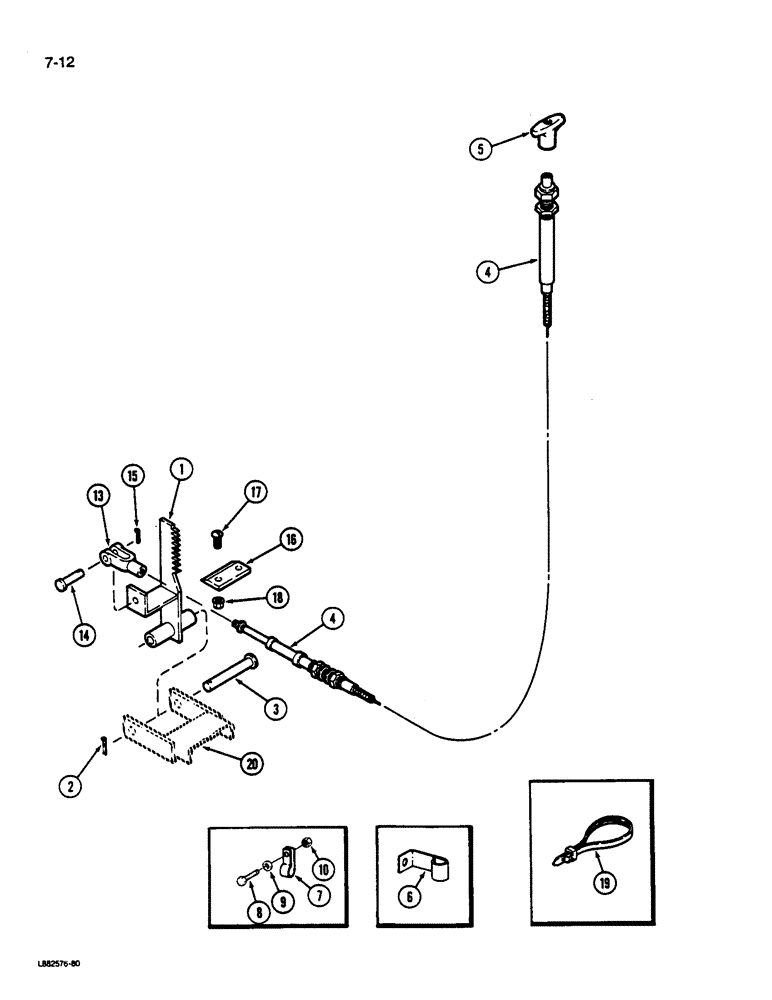

Запчасти Case IH 1822 (7-12) - PARKING BRAKE AND CONTROLS (5.1) - BRAKES

1

1277202C1

PLATE

SECTOR ASSEMBLY - parking brake

1шт.

2

648002

KNIFE

1/8" x 3/4"

1шт.

3

PO15464

HEADED PIN,3/8" x 4"

PIN - head, 3/8 x 4 inch, Type 1

1шт.

4

166149C91

CABLE

ASSEMBLY - parking brake

1шт.

5

170273C1

HANDLE

- brake control cable

1шт.

6

370383R1

CLIP

- brake cable

1шт.

7

299399C1

CLIP

CLAMP - 1/4 inch diameter

1шт.

8

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

13

NLS

NO LONGER SERVICED

CLEVIS - No. 10-32 x 1-9/16 inch

1шт.

14

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

1шт.

15

137159

COTTER PIN

3/32" x 5/8"

1шт.

16

77802C1

ORIFICE RING

BAR - parking brake ratchet

1шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

2шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

19

702093C1

CABLE TIE

CLAMP - tie strap

5шт.

20

REF

INSTRUCTION

SUPPORT ASSEMBLY - brake actuator (See Page 7-9)

1шт.
