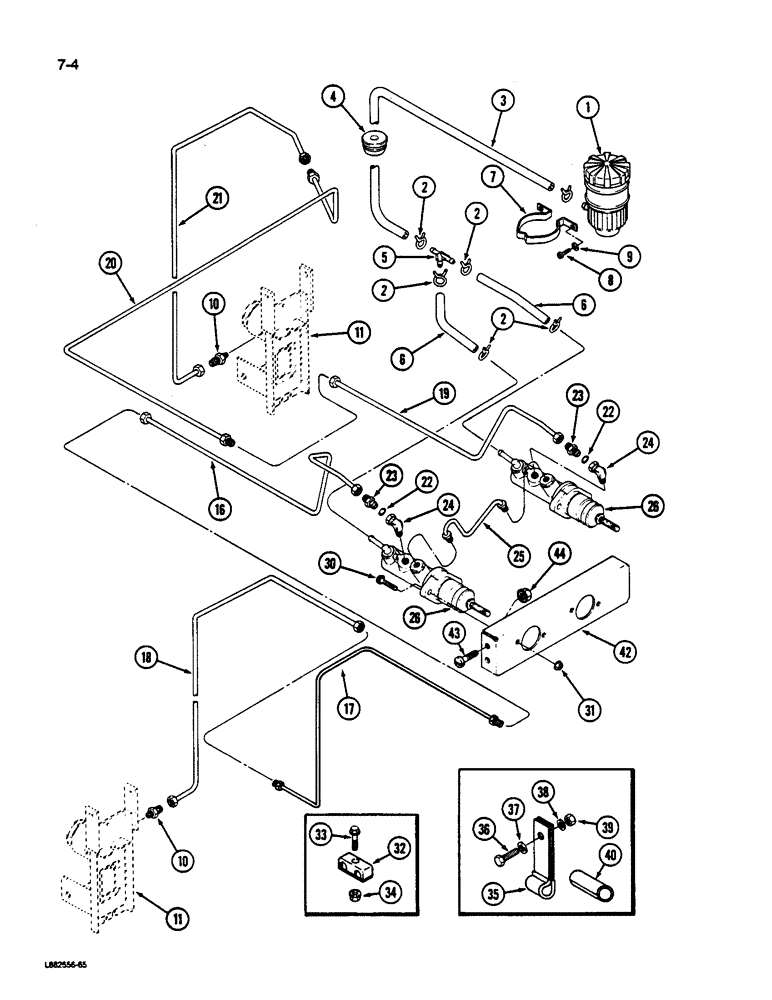

Запчасти Case IH 1822 (7-04) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

Ref no. 1 - cap no. is k964488. ph-cam 9-22-98

1шт.

2

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - No. 8, Type E wire hose (Replaces 210511R1)

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- brake hose, 1/2 inch ID

1шт.

5

1285312C1

TEE

CONNECTOR - Y Type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return, Short 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- reservoir mounting

1шт.

8

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"

2шт.

9

22317R1

WASHER

- flat, 7/32 x 3/4 x 3/64 inch

2шт.

10

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR - 1/4 flared tube

2шт.

11

REF

INSTRUCTION

SUPPORT ASSEMBLY - brake actuator (See Page 7-9)

2шт.

16

1285350C2

TUBE

ASSEMBLY - right brake front

1шт.

17

1288536C2

TUBE

ASSEMBLY - right brake intermediate

1шт.

18

1285349C1

TUBE

ASSEMBLY - right brake rear

1шт.

19

1285351C2

TUBE,0.25" OD, 449.6, 72.4 mm Length

ASSEMBLY - left brake front

1шт.

20

1285352C3

TUBE

ASSEMBLY - left brake intermediate

1шт.

21

1285353C2

TUBE

ASSEMBLY - left brake rear

1шт.

22

28616R1

O-RING,4-1, Cl 3, .351" ID x .072" Thk

2шт.

23

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - swivel, 1/4 inch short

2шт.

24

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 1/4 inch flared

2шт.

25

1281885C1

PIPE

TUBE - equalizer

1шт.

26

REF

INSTRUCTION

CYLINDER - master brake (See Page 7-11)

2шт.

30

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

4шт.

31

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

32

183824C1

CLAMP

- tube

3шт.

33

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

- hex flange lock, 1/4 NC x 1-1/4 inch

3шт.

34

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

35

633125R1

CLAMP

- tube

2шт.

36

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 x 1-1/4 inch, Grade 5

2шт.

37

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

38

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

39

120377

NUT,3/8" - 16, Gr 5

2шт.

40

163489C1

STRIP

- tube clamp

2шт.

42

1327561C2

SUPPORT

- master cylinder

1шт.

43

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

4шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.
