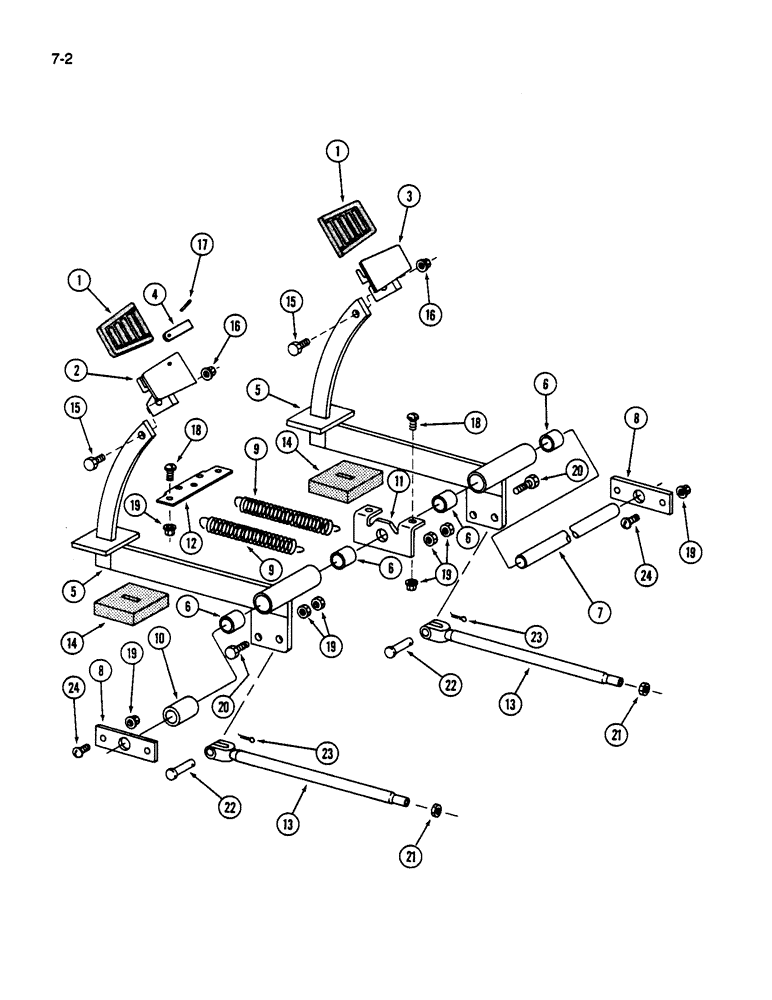

Запчасти Case IH 1822 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

863426R1

PAD

- brake pedal

2шт.

2

1321926C1

PEDAL

- brake, left

1шт.

3

1321927C1

PEDAL

- brake, right

1шт.

4

614251R1

BAR

- brake locking

1шт.

5

1321925C91

SUPPORT

ASSEMBLY - brake pedal

2шт.

6

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pedal support

2шт.

7

1280117C1

SHAFT

- support pivot

1шт.

8

1281794C1

PLATE

BAR - pivot shatt support

2шт.

9

398763R2

SPRING

- pedal return

2шт.

10

1280116C1

SPACER

- support pivot

1шт.

11

1321383C1

ANGLE

- pivot shaft support

1шт.

12

1327560C1

ANGLE

- spring hook

1шт.

13

1281882C1

ROD

LINK - brake

2шт.

14

1321935C1

SEAL

- pedal

2шт.

15

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex washer head poly-seal, 3/8 NC x 1-1/4 inch

2шт.

16

1327765C1

LOCK NUT

- hex flanged poly-seal, 3/8 inch NC

2шт.

17

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

20

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- hex, 5/16 NC x 2 inch

2шт.

21

30168R1

NUT,M10, Cl 10

- hex, M10, Grade 10

2шт.

22

138084

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/8 x 1-1/16 inch

2шт.

23

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

4шт.
