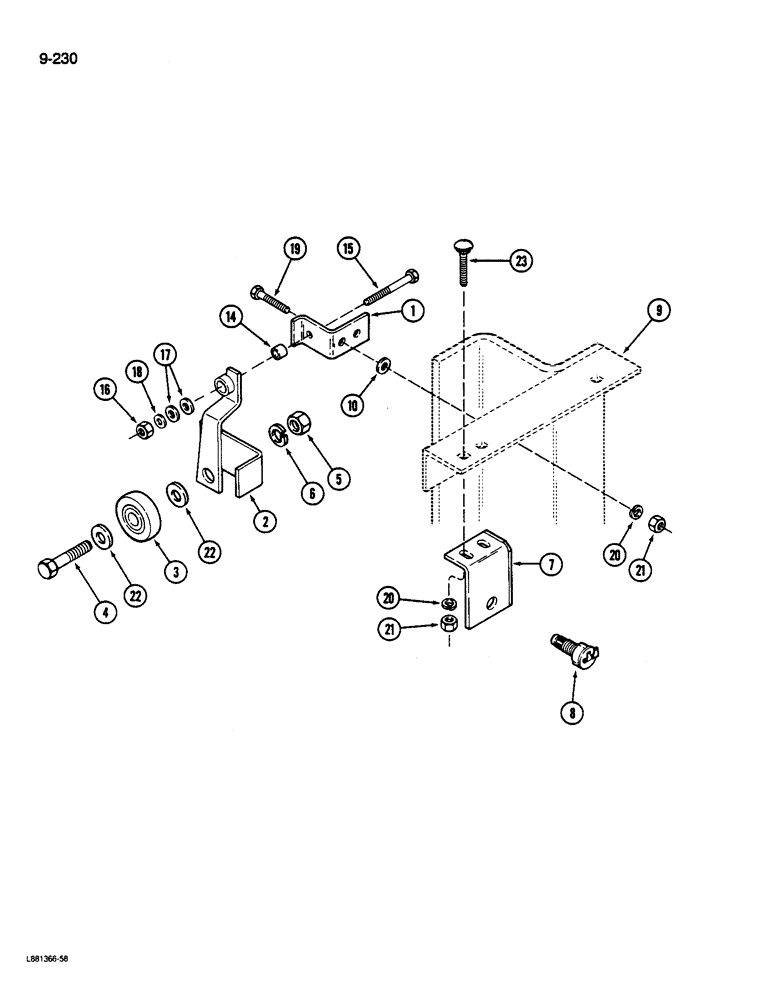

Запчасти Case IH 1822 (9-230) - BASKET INTERLOCK (16) - BASKET

1

87361C1

SUPPORT

ANGLE - roller pivot

1шт.

2

87342C3

ANGLE

- switch activator

1шт.

3

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

ROLLER - interlock

1шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 x 2 inch

1шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch

1шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

87354C1

ANGLE

- switch support

1шт.

8

REF

INSTRUCTION

SWITCH - interlock (See Page 4-15)

1шт.

9

REF

INSTRUCTION

MAST ASSEMBLY - basket (See Page 9-223)

1шт.

10

21309R1

WASHER

- flat, 13/32 x 7/8 x 5/32 inch (1844 only)

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - 1/2 inch tube (Order 196621C2, Serial Range: cut-length)

1шт.

15

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

16

9412083

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

17

495-11053

WASHER,1/2", SAE

- flat, 11/32 x 1-1/16 x 5/64 inch

2шт.

18

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

19

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

120377

NUT,3/8" - 16, Gr 5

4шт.

22

589068R1

WASHER

- flat, 21/32 x 1-1/4 x 3/32 inch

2шт.

23

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.
