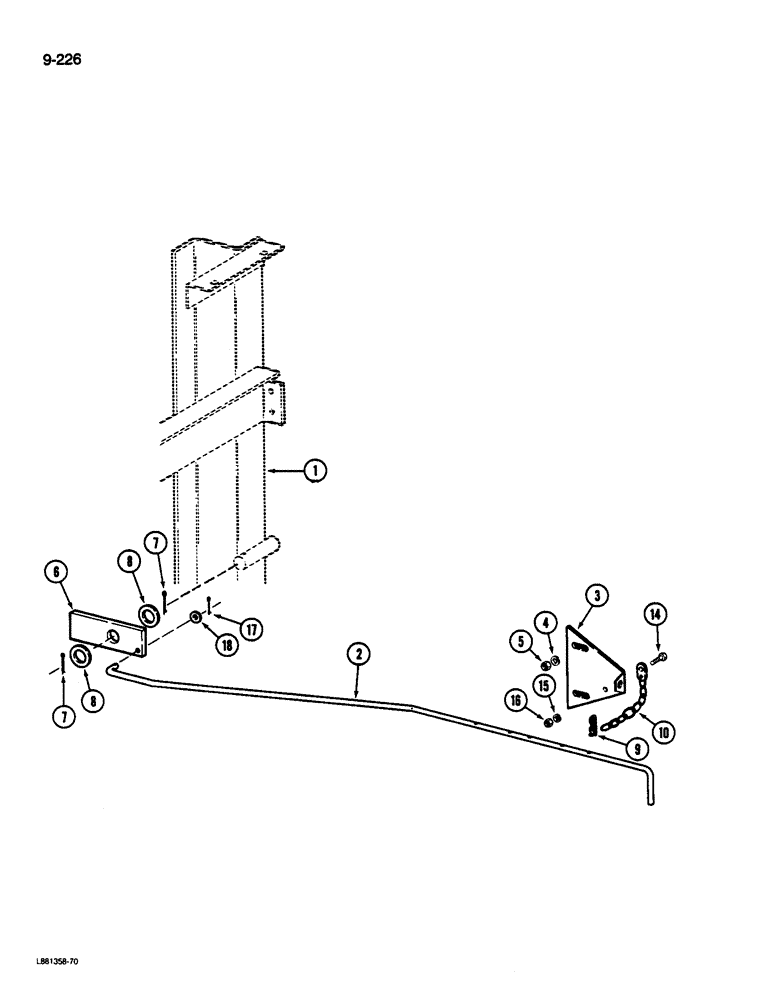

Запчасти Case IH 1822 (9-226) - FRONT BASKET LOCK (16) - BASKET

1

REF

INSTRUCTION

MAST ASSEMBLY (See Page 9-223)

1шт.

2

87265C4

ROD

ASSEMBLY - basket lock front (Replaces 87388C1)

1шт.

3

87264C3

SUPPORT

BRACKET - basket lock front

1шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

120377

NUT,3/8" - 16, Gr 5

2шт.

6

1270025C2

LARGE PLATE

BAR - basket lock

1шт.

7

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

8

478258R1

WASHER

- flat, 1-5/32 x 1-3/4 x 7/64 inch

2шт.

9

586591R1

COTTER PIN

PIN - quick attachable

1шт.

10

87509C2

CHAIN (AG)

CHAIN ASSEMBLY - basket lock pin

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.
