Запчасти Case IH 1822 (9-224) - BASKET LIFT, FRONT AND REAR (16) - BASKET

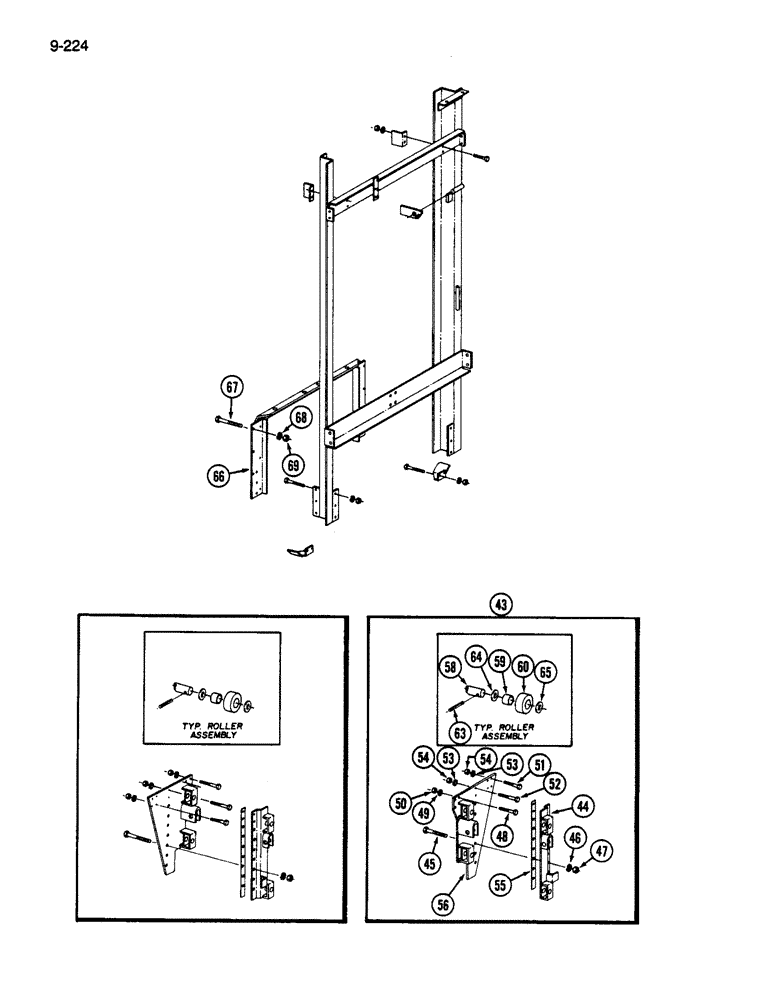

Схема запчастей Case IH 1822 - (9-224) - BASKET LIFT, FRONT AND REAR (16) - BASKET
44
52
53
56
63
64
43
53
50
66
67
58
48
68
47
65
45
54
51
49
54
46
69
59
60
55

Артикул

Название

Примечание

Количество

43

86854C91

SUPPORT

ASSEMBLY - left rear and right front

2шт.

44

1288891C1

SUPPORT

BRACKET - roller

1шт.

45

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

7шт.

46

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

47

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch, Grade 8

7шт.

48

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

3шт.

49

356864C1

WASHER - special lock, 1/2 inch

3шт.

50

25526R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

3шт.

51

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

4шт.

52

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, Grade 8

2шт.

53

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

54

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

6шт.

55

1266357C1

SHIM

- basket carriage, 1/32 inch (0.794 mm)

1шт.

55

1266358C1

SHIM

- basket carriage, 1/16 inch (1.598 mm)

1шт.

56

1278654C2

SUPPORT

- basket

1шт.

58

1260150C2

SHAFT

- roller

6шт.

59

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

- fiber glide

6шт.

60

1260135C1

ROLL

ER - support

6шт.

63

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

6шт.

64

20885R1

WASHER

- flat, 1-5/32 x 2 x 3/64 inch

12шт.

65

131019

SWEEP

- flat, 1-1/16 x 2 x 7/64 inch

6шт.

66

1278713C1

SUPPORT

ASSEMBLY - front and rear

2шт.

67

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- 1/2 x 2 inch

12шт.

68

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

69

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

Выбрано товаров: 25
