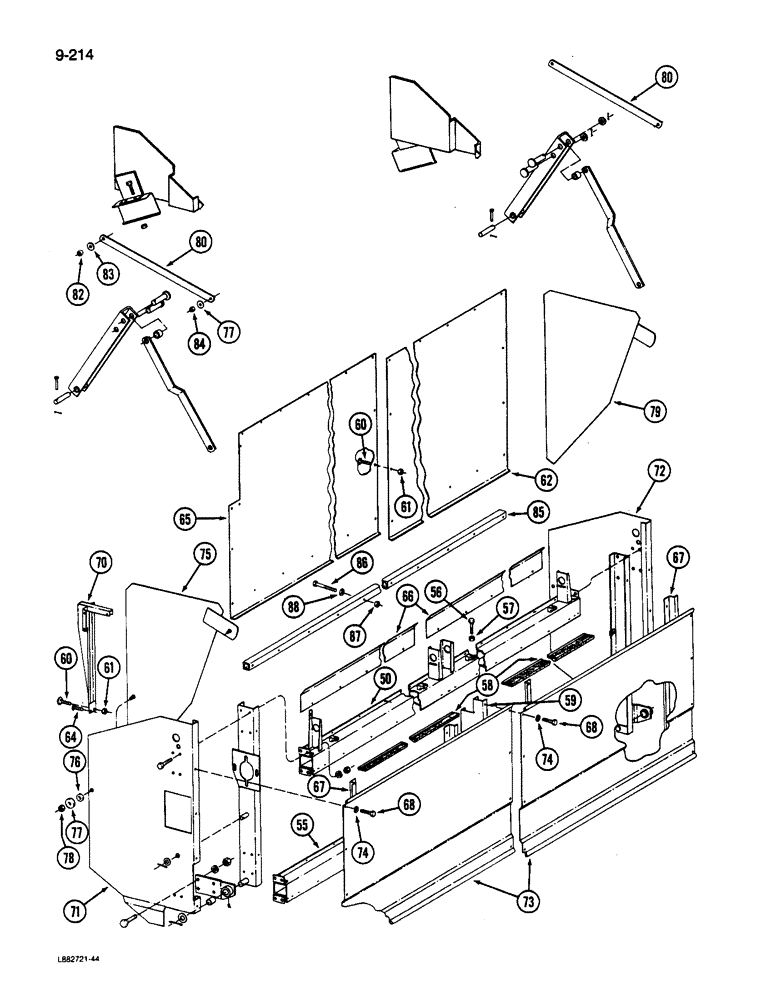

Запчасти Case IH 1822 (9-214) - BASKET DOOR (16) - BASKET
№
Артикул
Название
Примечание
Количество
87297C91
DOOR ASSY.
DOOR ASSEMBLY - basket
1шт.
50
1260289C1
STRUT
- door, top
1шт.
479370R1
KEY,1/4" Sq x 2", Par
- square, 1/4 x 2 inch
4шт.
55
1260275C1
SUPPORT
STRUT - door, bottom
1шт.
57
NLS
NO LONGER SERVICED
- hex jam, 5/16 inch NC
6шт.
58
1278102C1
BRUSH, COMMUTATOR
BRUSH - door slat
2шт.
59
1278692C1
SUPPORT
BRACKET - panel spacer
1шт.
60
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT - round head square neck, 5/16 NC x 3/4 inch
44шт.
61
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flanged lock, 5/16 inch NC
54шт.
62
1270125C1
COVER
- top rear
1шт.
64
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss, 5/16 NC x 3/4 inch
4шт.
65
1270124C1
COVER
- top front
1шт.
66
1262686C1
SHIELD
- chain
2шт.
67
1270128C1
SUPPORT
- door chain
4шт.
68
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
18шт.
70
1270153C1
COVER
- chain
1шт.
71
1270322C3
SHIELD
- front
1шт.
72
1270323C2
SHIELD
- rear
1шт.
73
1278689C1
PANEL
- basket door outer
2шт.
74
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
75
1262464C2
GUARD
SHIELD - upper front
1шт.
76
21403R1
WASHER
- flat, 13/32 x 1 x 1/8 inch
4шт.
77
21752R1
WASHER
- flat, 13/32 x 1-1/2 x 3/64 inch
4шт.
78
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, 3/8"-16, GB
4шт.
79
1262465C2
GUARD
SHIELD - upper rear
1шт.
80
1270329C1
ARM
- upper shield
2шт.
82
231-1448
NUT,1/2"-13, GB
- hex lock, 1/2 inch NC
2шт.
83
21740R1
WASHER
- flat, 17/32 x 1-1/2 x 3/64 inch
2шт.
84
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, 3/8"-16, GB
2шт.
85
1288757C3
TUBE,3331.7 mm Length
- upper swing
1шт.
86
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- hex, 3/8 NC x 3 inch
7шт.
87
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flanged lock, 3/8 inch NC
7шт.
88
477589R1
WASHER
- flat, 13/32 x 1-1/2 x 7/64 inch
7шт.
Выбрано товаров: 34
