Запчасти Case IH 1822 (9-212) - BASKET DOOR (16) - BASKET

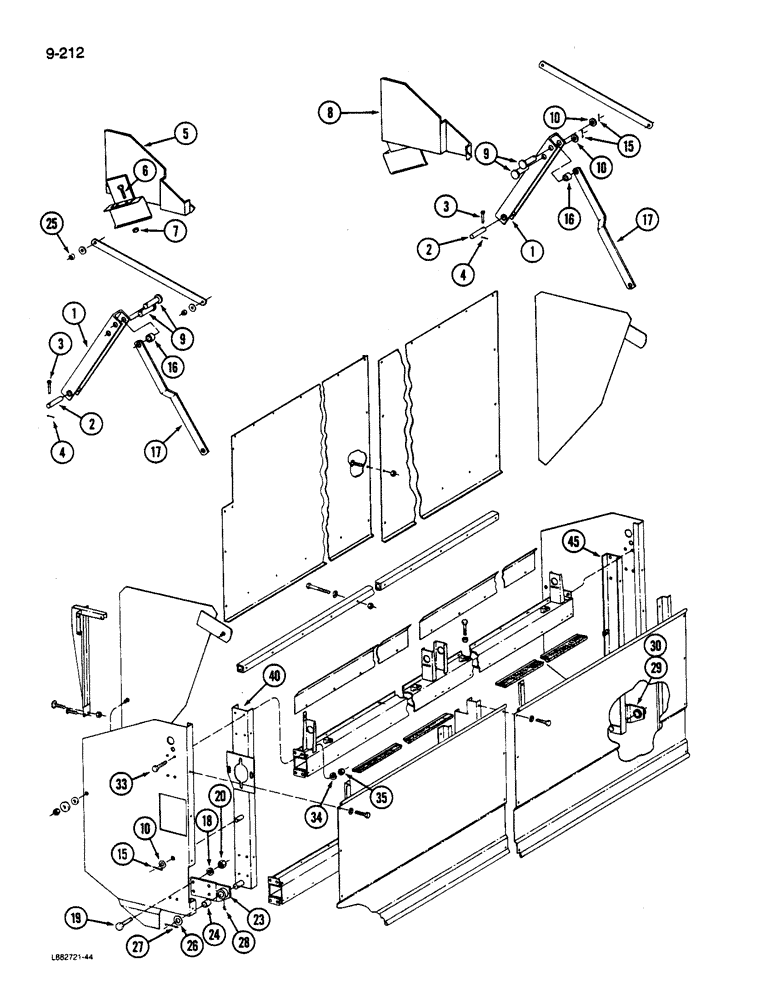

Схема запчастей Case IH 1822 - (9-212) - BASKET DOOR (16) - BASKET
15
10
3
7
18
17
6
10
2
24
2
3
16
33
20
40
16
1
25
27
17
35
29
19
1
9
28
26
15
34
4
9
30
10
8
5
4
23
45

Артикул

Название

Примечание

Количество

87297C91

DOOR ASSY.

DOOR ASSEMBLY - basket

1шт.

1

1260385C2

ARM

ASSEMBLY - amplifier

2шт.

2

1260395C1

SHAFT

- pivot

2шт.

3

21242R1

HEADED PIN

PIN - headed, 1/4 x 1-3/4 inch

2шт.

4

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

87256C1

GUIDE

- front, basket door

1шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

4шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flanged lock, 3/8 inch NC

6шт.

8

87257C2

GUIDE

- rear, basket door

1шт.

9

1260383C1

SHAFT

- amplifier link

4шт.

10

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 7/64 inch

6шт.

15

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

6шт.

16

607783R1

SPACER,1" Pipe x 1850"

- 1 x 1-27/32 inch

4шт.

17

1260388C1

BAR

- amplifier link

2шт.

18

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

19

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 x 1-1/2 inch

12шт.

20

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

23

1270277C1

PIVOT

ASSEMBLY - door front

1шт.

24

458900R1

SPACER

BUSHING - split steel backed

1шт.

25

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

8шт.

26

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

27

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

2шт.

28

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - 65 degree, grease, 3/16 inch

2шт.

29

1270278C1

PIVOT

ASSEMBLY - door rear

1шт.

30

458900R1

SPACER

BUSHING - split steel back

1шт.

33

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

20шт.

34

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

35

120377

NUT,3/8" - 16, Gr 5

24шт.

40

1270172C2

CHANNEL

- front door

1шт.

45

1270173C1

CHANNEL

- rear door

1шт.

Выбрано товаров: 30
