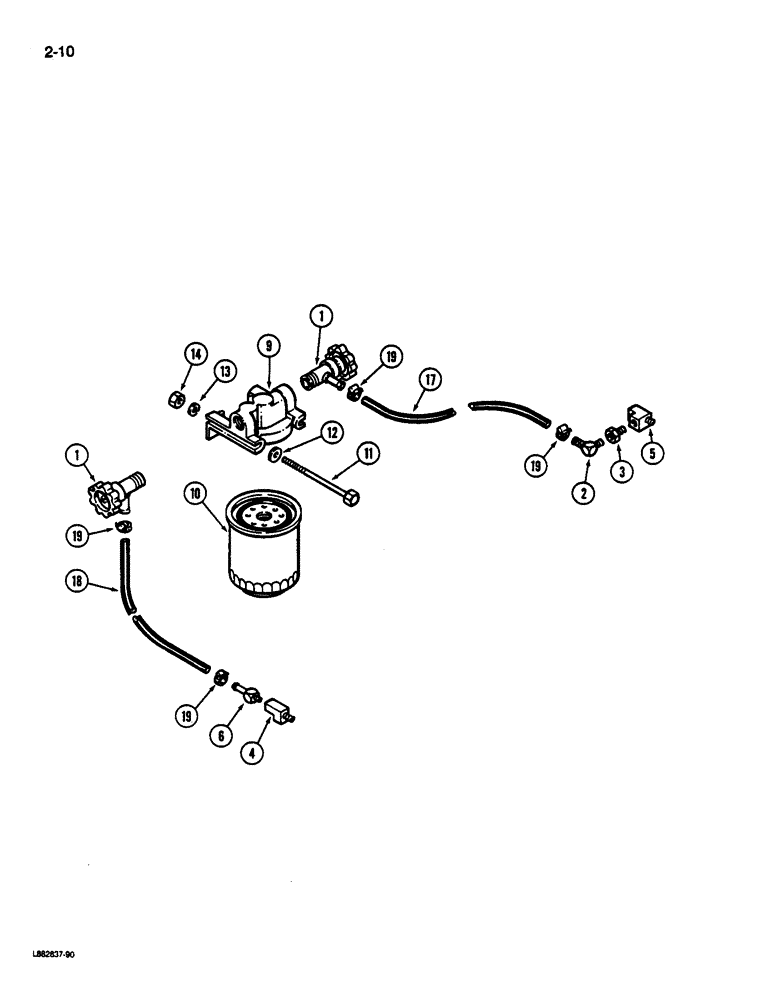

Запчасти Case IH 1822 (2-10) - COOLANT FILTER AND CONDITIONER, D466 AND DT466C DIESEL (01) - ENGINE

1

321840C91

LOCK VALVE

VALVE - filter head water

2шт.

2

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree barbed, 1/4 inch PT

1шт.

3

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

BUSHING - 3/8 to 1/4 inch

1шт.

4

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

- 3/8-18 PT

1шт.

5

444148

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- 1/4-18 PT

1шт.

6

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector, Water pump inlet 3/8" Hose X 1/4" NPTF Beaded

1шт.

9

1800029C1

HEAD

HOUSING - coolant filter

1шт.

10

A151931

FILTER

- coolant

1шт.

11

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

BOLT - hex, 5/16 NC x 4-1/2 inch

2шт.

12

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

120376

NUT,5/16"-18, G5

2шт.

17

NSS

NOT SOLD SEPARAT

HOSE - coolant conditioner, inlet, (Order B90924, Serial Range: cut-length)

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - coolant conditioner, outlet (Order B90924, Serial Range: cut-length)

1шт.

19

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Retaining #06, .44/.78 Type F Worm

4шт.
