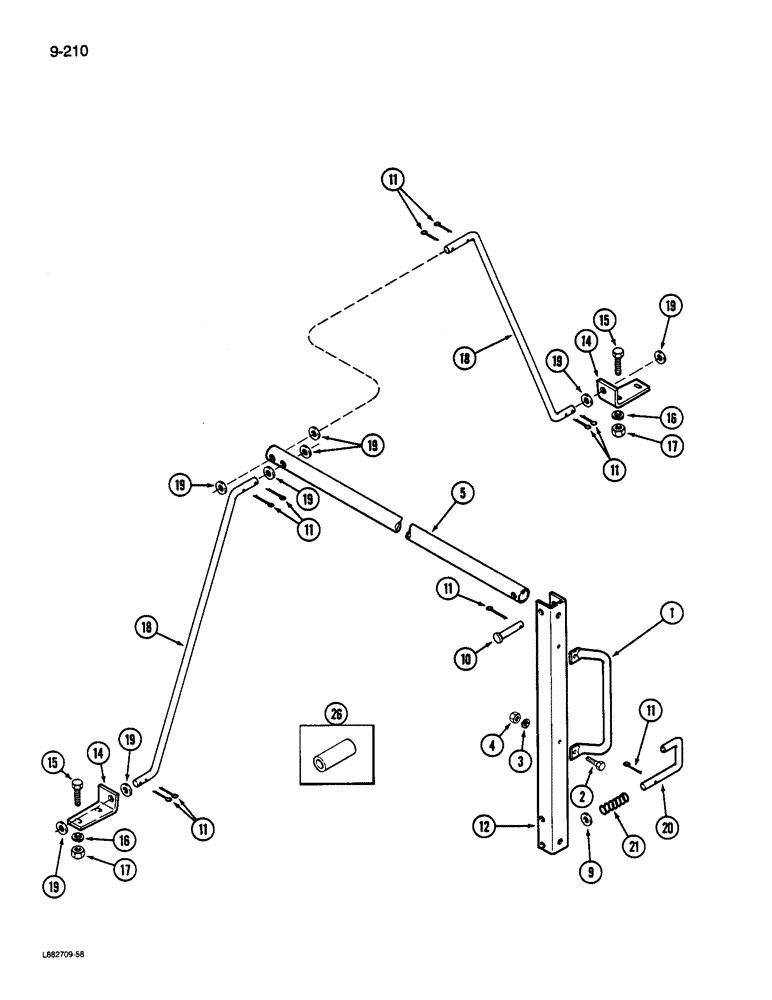

Запчасти Case IH 1822 (9-210) - BASKET HAND RAIL, 1822 COTTON PICKER (16) - BASKET

1

1321545C1

HANDLE

- grab

1шт.

2

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

120376

NUT,5/16"-18, G5

2шт.

5

1329268C1

TUBE,33.34mm OD x 2837mm L

- hand rail

1шт.

9

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

10

23173R1

CLEVIS PIN

PIN - headed, 1/2 x 2-3/4 inch

1шт.

10

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

1шт.

11

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

10шт.

12

1329269C1

CHANNEL

- hand rail

1шт.

14

1329464C1

SUPPORT

BRACKET - rear

1шт.

15

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

120377

NUT,3/8" - 16, Gr 5

4шт.

18

1329467C1

SUPPORT

- rear

2шт.

19

131016

WASHER

- flat, 21/32 x 1-5/16 x 5/64 inch

8шт.

20

1329472C1

PIN

- hand rail

1шт.

21

375962R1

SPRING

- handle

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

26

164519C1

SPACER,5/8" Tube x 1 5/8"

- 5/8 x 1-5/8 inch

1шт.

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.
