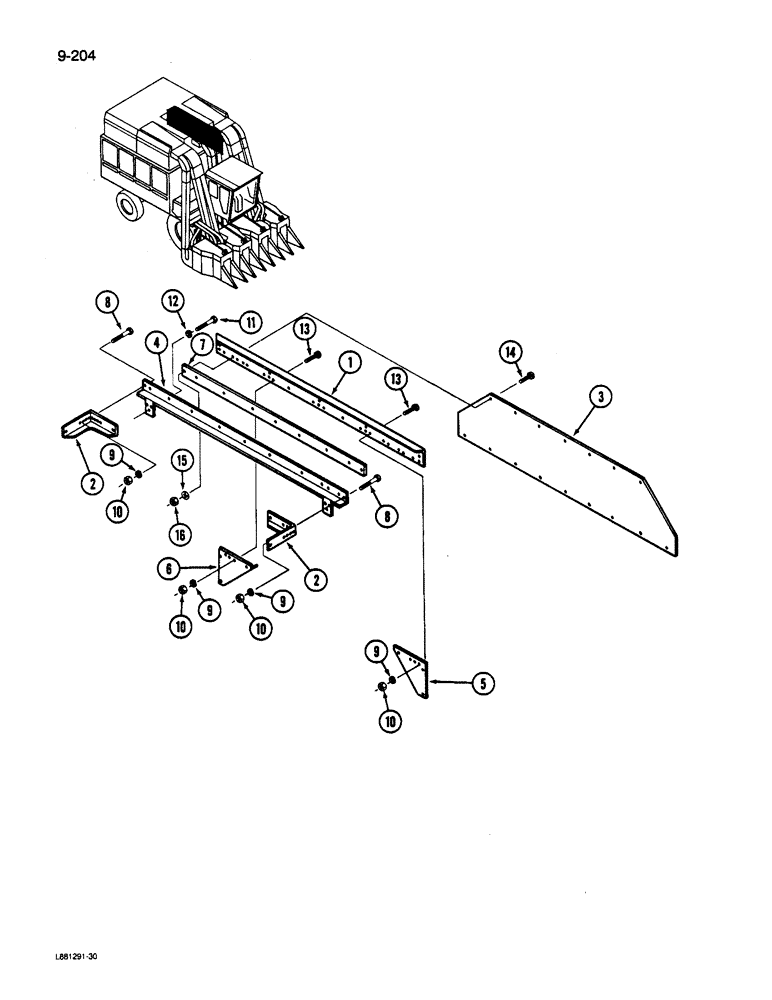

Запчасти Case IH 1822 (9-204) - LEFT BASKET SIDE, EXCLUDING DOOR ASSEMBLY (16) - BASKET

87294C91

CONTAINER

BASKET ASSEMBLY (1822 Cotton Picker only)(See Note A and B)

1шт.

87293C91

CONTAINER

BASKET ASSEMBLY (1844 Cotton Picker only)(See Note A and B)

1шт.

1

1260248C1

SUPPORT

ANGLE - upper

1шт.

2

1278117C1

ANGLE

BRACE - corner

4шт.

3

1288754C4

FLAP

- door

1шт.

4

1288785C2

SUPPORT

ANGLE - upper

1шт.

5

1288786C1

LARGE PLATE

PLATE - corner, front

1шт.

6

1288787C1

LARGE PLATE

PLATE - corner, rear

1шт.

7

1288894C2

BAR

- door

1шт.

8

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

120377

NUT,3/8" - 16, Gr 5

1шт.

11

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.

12

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

13

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

15

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch (10 x 38 x 3 mm)

1шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.
