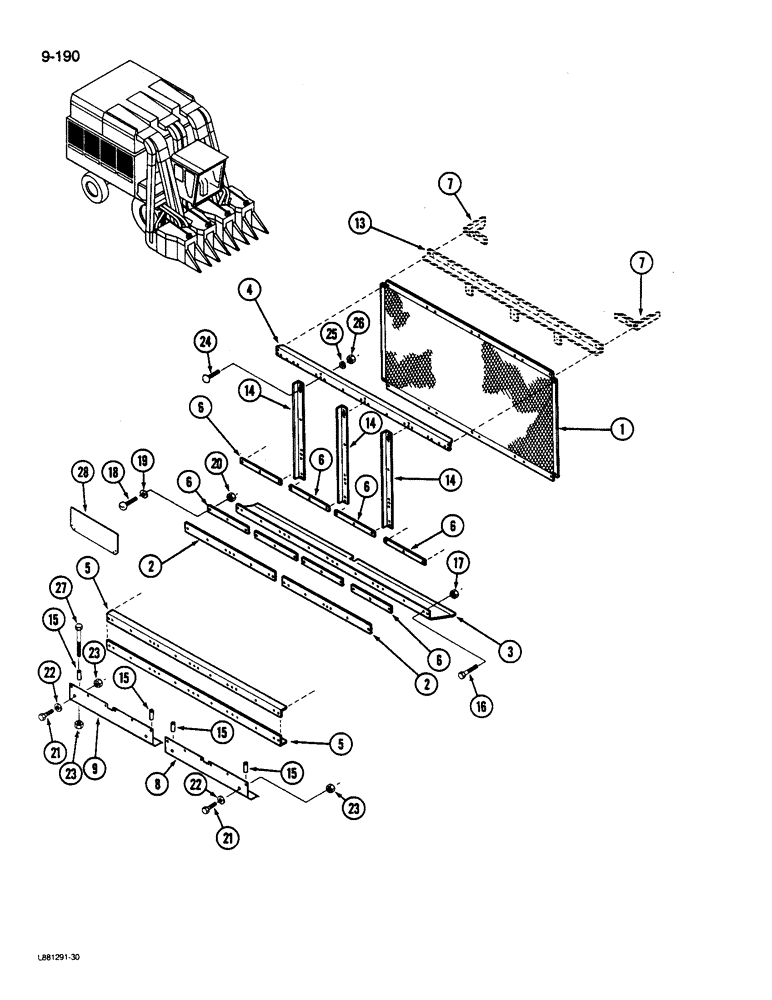

Запчасти Case IH 1822 (9-190) - RIGHT BASKET SIDE (16) - BASKET

87294C91

CONTAINER

BASKET ASSEMBLY - (1822 Cotton Picker only)(See Notes A and B)

1шт.

87293C91

CONTAINER

BASKET ASSEMBLY - (1844 Cotton Picker only)(See Notes A and B)

1шт.

1

1260309C1

SCREEN

- side

4шт.

2

1262487C1

BAR

RETAINER - flap

2шт.

3

1262488C2

FIXING STRIP

FLAP - rubber

1шт.

4

1266279C1

SUPPORT

ANGLE - upper, right

1шт.

5

1270023C1

ANGLE

RETAINER - screen

2шт.

6

1270044C1

LARGE PLATE

RETAINER - screen

8шт.

7

1278117C1

ANGLE

BRACE - corner

4шт.

8

1278543C2

SHIELD

- unloader front, right

1шт.

9

1278544C2

SHIELD

- unloader rear, right

1шт.

13

1288774C2

ANGLE

- side upper

1шт.

14

1288779C1

ANGLE

- upright

3шт.

15

21367R1

SPACER,1/4" Pipe x 2 1/2"

- pipe, 1/4 x 2-1/2 inch (Replaces PO22778)

4шт.

16

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1 inch

14шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

14шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

64шт.

19

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

64шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

64шт.

21

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

3шт.

22

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

3шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

7шт.

24

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

20шт.

25

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

26

120377

NUT,3/8" - 16, Gr 5

20шт.

27

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

4шт.

28

87493C1

PLATE - model number

1шт.
