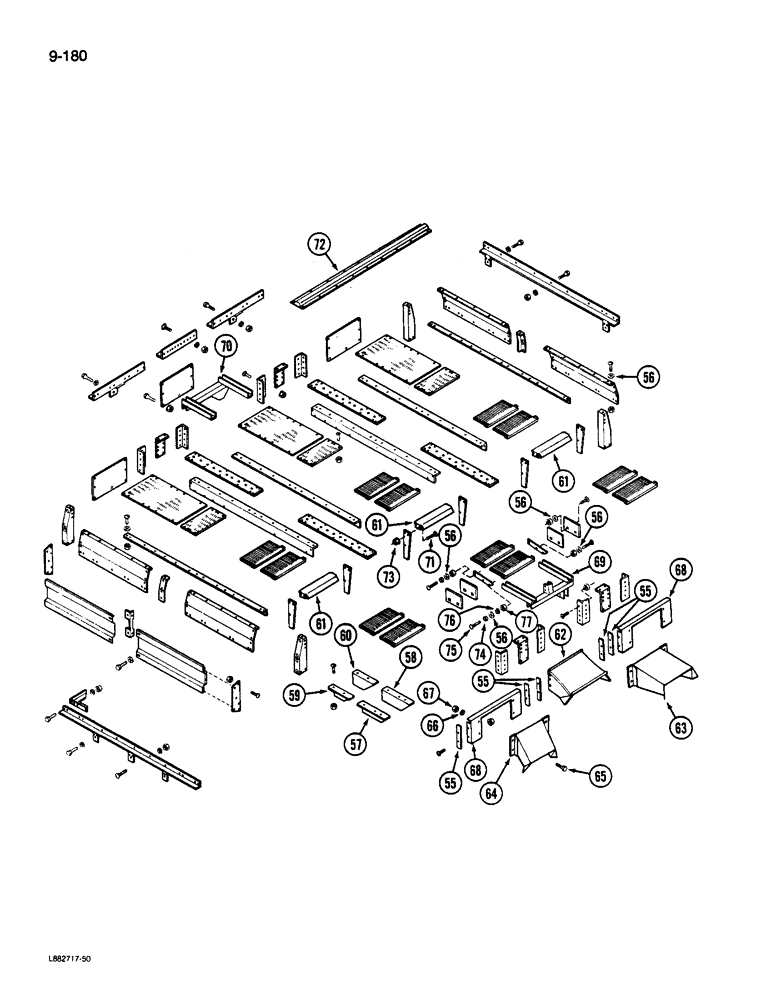

Запчасти Case IH 1822 (9-180) - BASKET TOP, 1822 COTTON PICKER (16) - BASKET

87296C91

CONTAINER

TOP ASSEMBLY - basket

1шт.

55

1270282C1

LARGE PLATE

BAR - spacer

12шт.

56

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

57

87054C2

SUPPORT

ANGLE - middle rear, left

1шт.

58

87055C2

SUPPORT

ANGLE - middle rear, right

1шт.

59

87056C1

SUPPORT

ANGLE - rear, left

1шт.

60

87057C1

SUPPORT

ANGLE - rear, right

1шт.

61

87497C1

COVER

SUPPORT - grate

3шт.

62

87065C1

COVER

- chute

1шт.

63

1285268C1

HOOD ASSY.

COVER - chute, left

1шт.

64

1285269C1

HOOD ASSY.

COVER - chute, right

1шт.

65

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

66

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

67

120376

NUT,5/16"-18, G5

1шт.

68

87587C1

PLATE

- chute

2шт.

69

1329471C2

CHANNEL

- cylinder mounting, front

1шт.

70

1278013C4

CHANNEL

- cylinder mounting, rear

1шт.

71

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 1-1/1 inch

1шт.

72

87531C1

SUPPORT

- top

1шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

74

612233R1

SPACER,5/8" Tube x 1 1/8"

- tube, 5/8 x 1-3/16 inch

2шт.

75

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

2шт.

76

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

77

120377

NUT,3/8" - 16, Gr 5

2шт.
