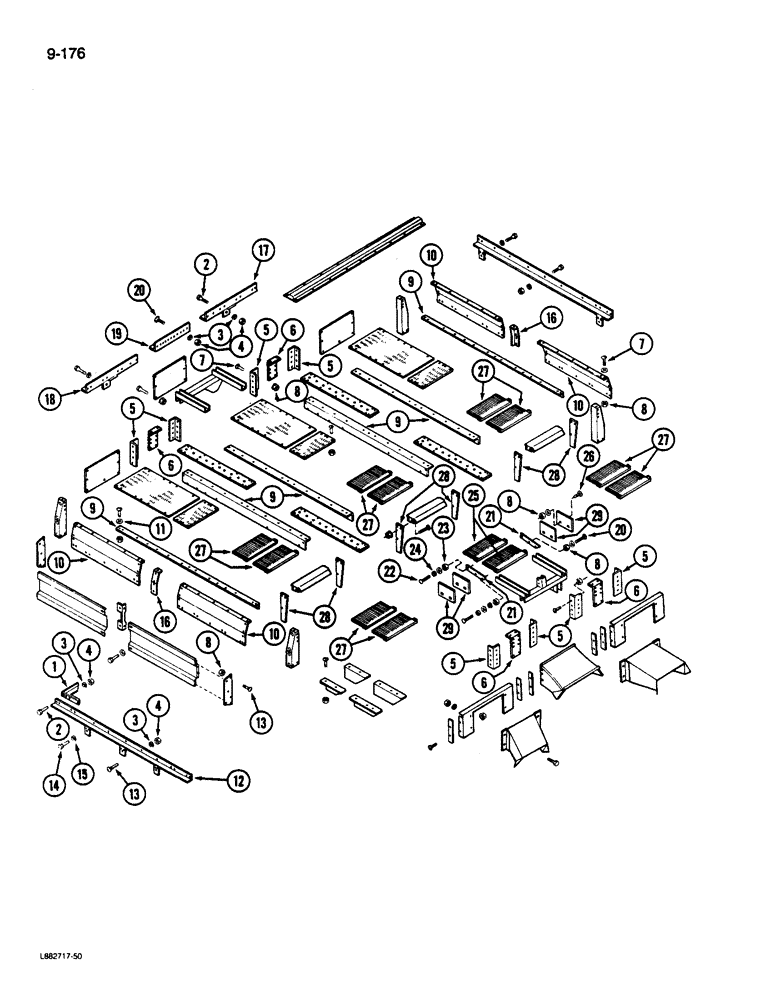

Запчасти Case IH 1822 (9-176) - BASKET TOP, 1822 COTTON PICKER (16) - BASKET

87296C91

CONTAINER

TOP ASSEMBLY - basket

1шт.

1

1278117C1

ANGLE

BRACE - corner

4шт.

2

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

120377

NUT,3/8" - 16, Gr 5

1шт.

5

223004C1

ANGLE

SUPPORT - grate

12шт.

6

1270032C1

LARGE PLATE

PLATE - cover

4шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

9

1260291C3

ANGLE

SUPPORT - grate

6шт.

10

1260280C2

COVER

- side

4шт.

11

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

12

1288774C2

ANGLE

- side, upper, right

1шт.

13

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

14

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

15

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

1260292C1

SUPPORT

- basket

2шт.

17

1288777C2

ANGLE BAR

SUPPORT - top, left

2шт.

18

1288778C2

ANGLE BAR

SUPPORT - top, right

2шт.

19

1270062C1

ANGLE BAR

SUPPORT - top, tie

2шт.

20

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

21

1260284C2

BAR

- cover

2шт.

22

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

24

561277R1

SPACER,5/8" Tube x 1/2"

- tube, 5/8 x 1/2 inch

2шт.

25

1260285C1

DEFLECTOR

- door

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

1шт.

27

221224C1

DEFLECTOR

- door

10шт.

28

87049C1

LARGE PLATE

PLATE - side

6шт.

29

1288762C1

LARGE PLATE

PLATE - support

4шт.
