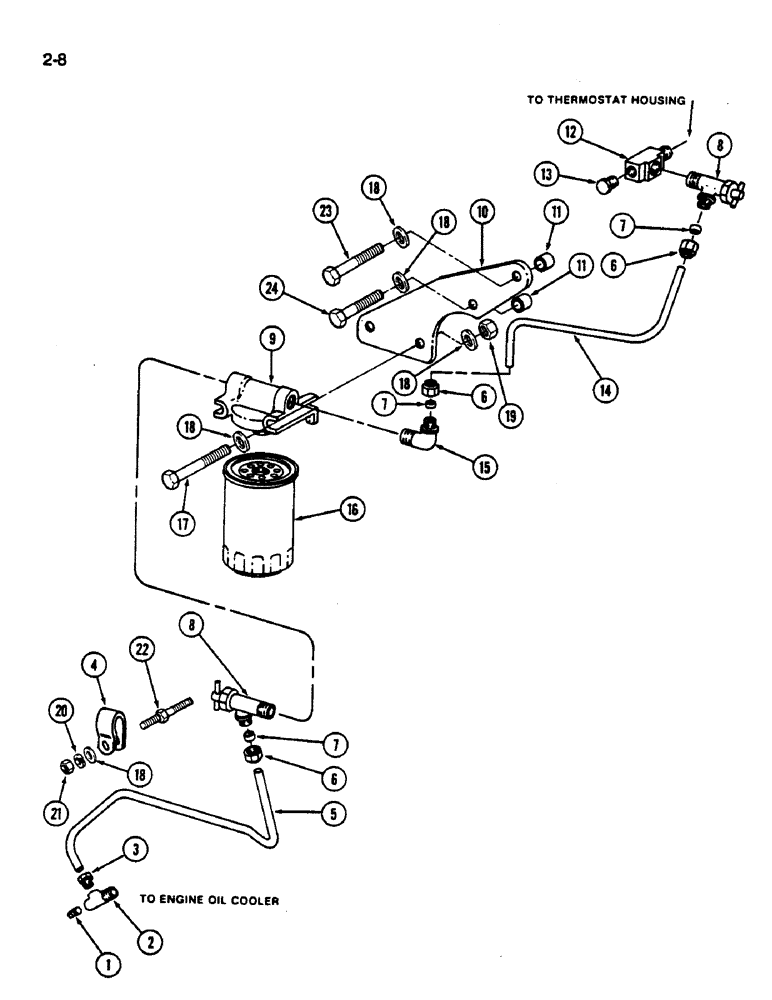

Запчасти Case IH 1822 (2-08) - COOLANT FILTER AND CONDITIONER, D466 AND DT466C DIESEL (01) - ENGINE

1

444572

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF, Brass

PLUG - square head pipe, 1/8-27

1шт.

2

690592C1

TEE,3/8" x 1/4" - 18 NPT x 1/8" - 27 NPT

- oil cooler

1шт.

3

222-1004

TUBE NUT,5/8" - 18

NUT - inverted flared tube, 3/8 inch

1шт.

4

299404C1

CLAMP

- filter inlet tube

1шт.

5

1800124C91

TUBE

AND SLEEVE - coolant inlet (D446, 1822 Cotton Picker)

1шт.

5

1808357C91

TUBE

AND SLEEVE - coolant inlet (DT466C, 1844 Cotton Picker)

1шт.

6

265205R1

TUBE NUT,0.531" Length

NUT - tube

3шт.

7

265204R1

SLEEVE

- tube

3шт.

8

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut-off

2шт.

9

1800029C1

HEAD

ER AND RETAINER - coolant filter

1шт.

10

1800030C1

BRACKET

- mounting, coolant filter

1шт.

11

371702R1

SPACER,3/8" X-Strng Pipe x 13/16"

- pipe, 3/8 x 13/16 inch

2шт.

12

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

- 3/8-18 internal/external/internal pipe

1шт.

13

20990R1

PLUG

- pipe, 3/8-18

1шт.

14

1800185C91

TUBE

- coolant outlet (Includes two sleeves 265204R1 and two nuts 265205R1)

1шт.

15

606618C1

ELBOW UNION

ELBOW - 90 degree coolant outlet tube

1шт.

16

A151931

FILTER

AND GASKET - coolant

1шт.

17

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

18

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened, 13/32 x 13/16 x 3/32 inch

7шт.

19

25522R1

NUT,3/8"-16, G8

- 3/8 inch, Grade 8

2шт.

20

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

25523R1

NUT,3/8"-24, G8

- 3/8 inch NF, Grade 8

1шт.

22

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

- rear upper, 3/8-16 x 3/8-24

1шт.

23

24845R1

BOLT,Hex, 3/8" - 16 x 4", Gr 8

1шт.

24

25501R1

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

- 3/8 NC x 3-3/4 inch, Grade 8

1шт.
