Запчасти Case IH 1822 (9-174) - MAJOR BASKET ASSEMBLIES (16) - BASKET

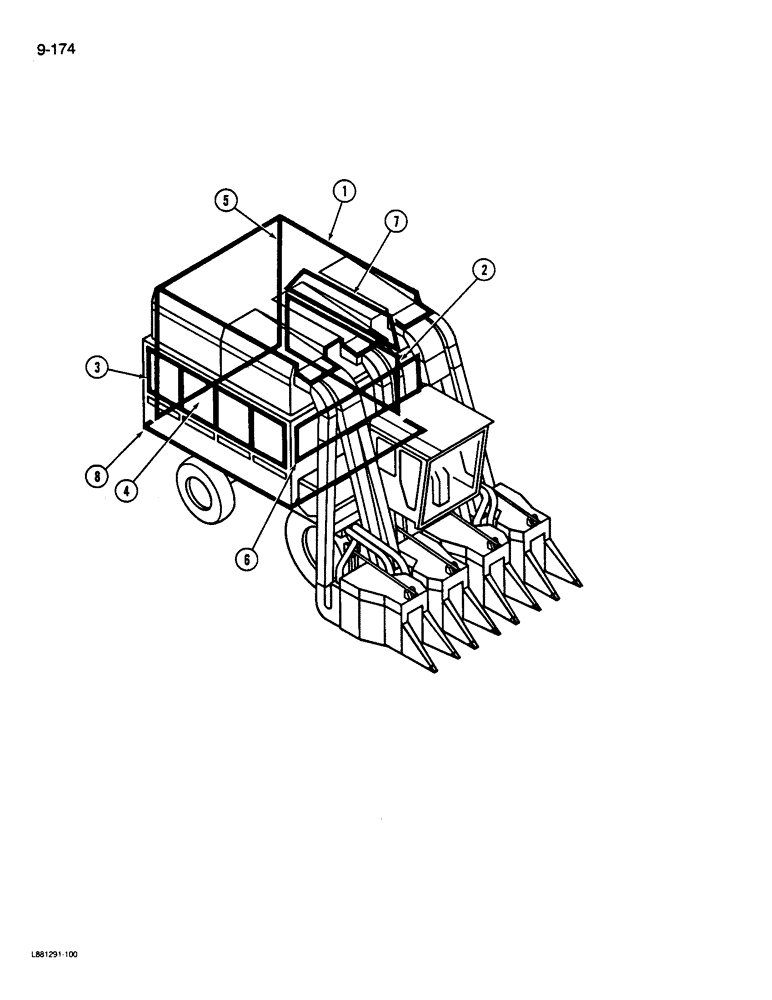

Схема запчастей Case IH 1822 - (9-174) - MAJOR BASKET ASSEMBLIES (16) - BASKET
8
6
7
5
2
4
1
3

Артикул

Название

Примечание

Количество

1

87296C91

CONTAINER

BASKET ASSEMBLY - top (1822 Cotton Picker) (See Note)(See Page 9-177)

1шт.

1

87295C91

CONTAINER

BASKET ASSEMBLY - top (1844 Cotton Picker) (See Note)(See Page 9-183)

1шт.

2

87297C91

DOOR ASSY.

DOOR ASSEMBLY - basket (See Note)(See Page 9-213)

1шт.

3

87294C91

CONTAINER

BASKET ASSEMBLY - top (1822 Cotton Picker) (See Note)(See Page 9-191)

1шт.

3

87293C91

CONTAINER

BASKET ASSEMBLY - top (1844 Cotton Picker) (See Note)(See Page 9-191)

1шт.

4

REF

INSTRUCTION

BASKET - right side (See Page 9-191)

1шт.

5

REF

INSTRUCTION

BASKET END - rear (See Page 9-193 and 9-195)

1шт.

6

REF

INSTRUCTION

BASKET END - front (See Page 9-197 and 9-201)

1шт.

7

REF

INSTRUCTION

BASKET - left side (See Page 9-205)

1шт.

8

REF

INSTRUCTION

BASKET - floor (See Page 9-207 and 9-209)

1шт.

Выбрано товаров: 10
