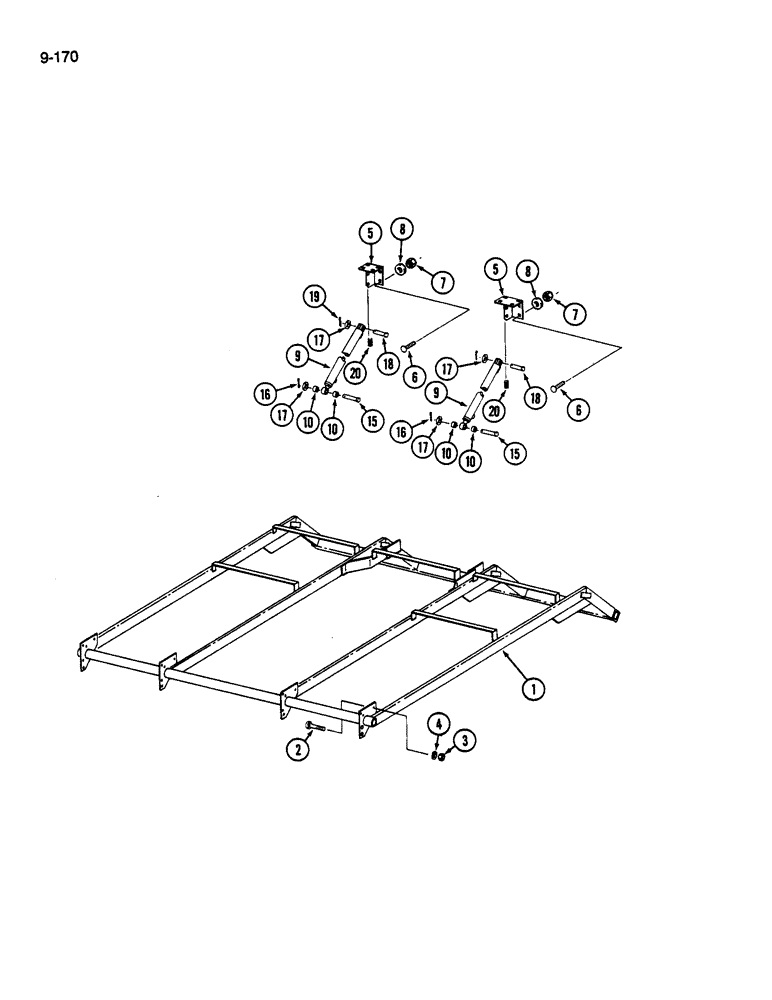

Запчасти Case IH 1822 (9-170) - BASKET COMPACTOR, 1822 COTTON PICKER (15) - HANDLING SYSTEM

1

1278697C4

CHASSIS

FRAME - compactor

1шт.

2

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

20шт.

3

120377

NUT,3/8" - 16, Gr 5

20шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

5

1278704C3

SUPPORT

BRACKET - cylinder mounting

2шт.

6

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

16шт.

7

17044R

NUT - hex lock, 3/8 inch NC

16шт.

8

390305C1

WASHER

- flat 13/32 x 13/16 x 1/16 inch

16шт.

9

REF

INSTRUCTION

CYLINDER - compactor (See Page 8-71)

2шт.

10

554327R1

SPACER,7/8" Tube x 1"

- tube, 7/8 x 1 inch

4шт.

15

1329367C2

PIN

- headed

2шт.

16

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

18

1338701C1

PIN

5/8 x 2-1/4 inch

2шт.

18

1329367C2

PIN

- 5/8 x 4-1/2 inch

2шт.

19

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

2шт.
