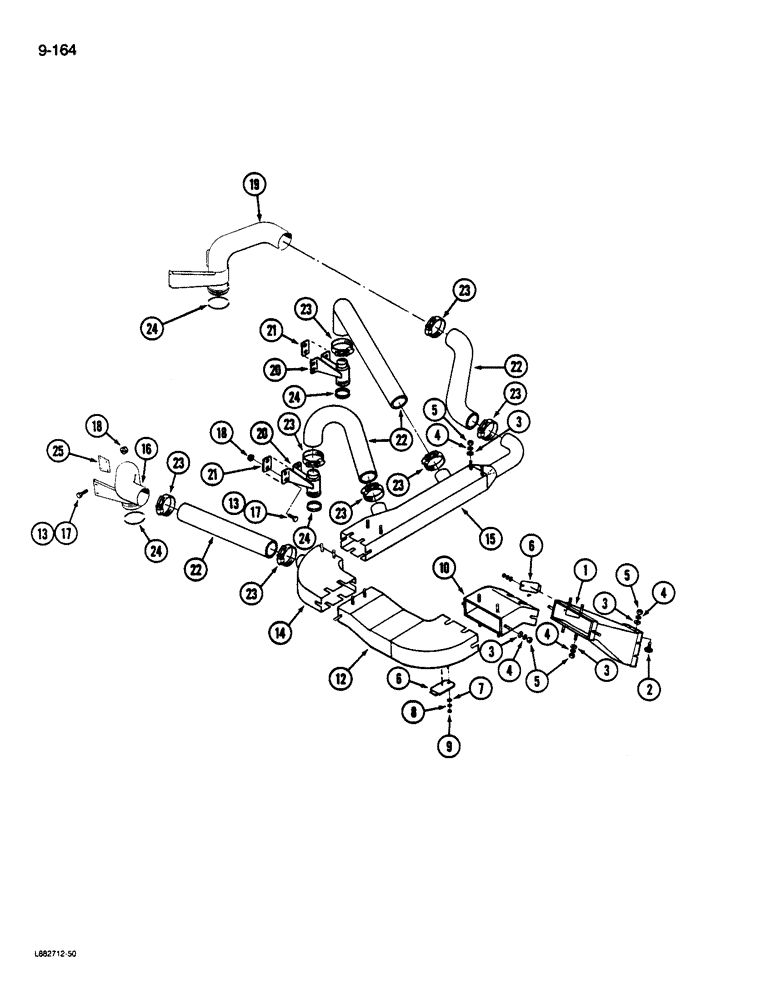

Запчасти Case IH 1822 (9-164) - AIR DUCTS AND HOSES, 1822 COTTON PICKER (15) - HANDLING SYSTEM

1

1270084C1

DUCT

- transition

1шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

3

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

36шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

36шт.

5

120376

NUT,5/16"-18, G5

36шт.

6

1270220C1

COVER

- duct access

2шт.

7

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

1270166C1

DUCT

- elbow

1шт.

12

1288929C2

DUCT

- air supply, left

1шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

4шт.

14

1288920C1

TUBE

DUCT - air supply elbow

1шт.

15

1288924C1

DUCT

- air supply

1шт.

16

1338668C2

DUCT

- left drum front (Replaces 1278917C2)

1шт.

17

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

17

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- special lock

4шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

16шт.

19

1338669C2

DUCT

- right drum front (Replaces 1278918C2)

1шт.

20

1339277C2

DUCT

- drum rear (Replaces 1278756C1)

2шт.

21

1288504C1

SPACER

PLATE - spacer

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 31 inch (787 mm) (Order 1288985C1, Serial Range: cut-length)

6шт.

1288985C1

HOSE

- air, bulk length

1шт.

23

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, No. 80 Type F

8шт.

24

28012R1

O-RING,-428, 90 Duro, 4.850" ID x .275" Thk

- 4-7/8 x 5-3/8 inch, Class 6 (124 x 137 mm)

4шт.

25

1338691C1

ANGLE

SUPPORT - duct

2шт.
