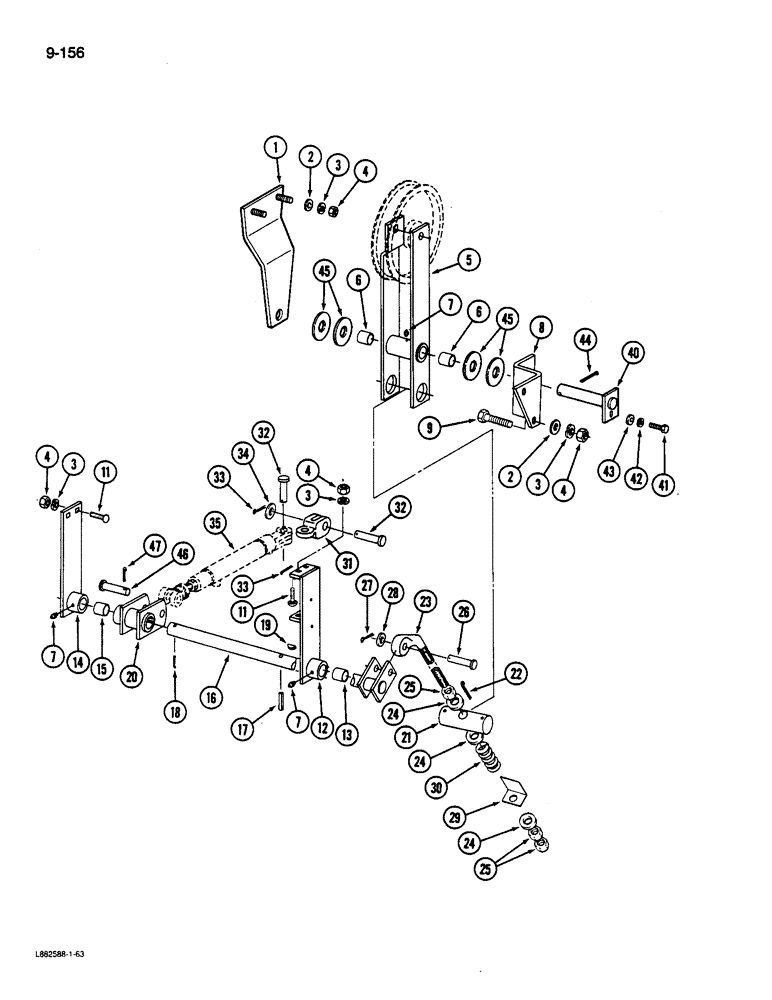

Запчасти Case IH 1822 (9-156) - REAR FAN PULLEY LINKAGE, 1822 COTTON PICKER P.I.N. 1501 AND AFTER, 1844 COTTON PICKER 1001 AND AFTER (15) - HANDLING SYSTEM

1

1329451C1

SUPPORT

PLATE - pivot support

1шт.

2

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

120377

NUT,3/8" - 16, Gr 5

1шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

5

87795C1

ARM

ASSEMBLY - idler

1шт.

6

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- arm

2шт.

7

190454

FITTING - grease, 1/4 inch

3шт.

8

1338544C2

SUPPORT

- pulley mount

1шт.

9

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

10

28585R1

WASHER

- flat, 1-1/32 x 1-5/8 x 1/16 inch

3шт.

12

87797C1

ARM

SUPPORT ASSEMBLY - pivot shaft rear

1шт.

13

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- support

1шт.

14

87798C1

ARM

SUPPORT ASSEMBLY - pivot shaft front

1шт.

15

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- support

1шт.

16

1260106C1

SHAFT

- cylinder pivot

1шт.

17

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

18

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

1260096C2

TUBE

- cylinder pivot

1шт.

21

1260189C1

PIVOT PIN

PIN - pivot rod

1шт.

22

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

23

1260092C1

STEM

ROD - fan pivot

1шт.

24

446257

WASHER,3/4" x 1 3/4" x .148"

- flat, 13/16 x 1-3/4 x 1/8 inch

3шт.

25

280954

NUT,3/4"-10, G5

3шт.

26

21591R1

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch

1шт.

27

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

28

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

29

1339330C1

ANGLE BAR

ANGLE - spring

1шт.

30

1266337C1

SPRING

- 1 inch ID

1шт.

31

1278703C1

CLEVIS

PIVOT - cylinder mounting

1шт.

32

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

1шт.

33

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

34

131016

WASHER

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

35

REF

INSTRUCTION

CYLINDER - fan clutch (See Page 8-47)

1шт.

40

1329435C2

PIVOT

- fan idler

1шт.

41

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

42

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

43

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 33/64 inch

1шт.

44

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

45

131002

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

14шт.
