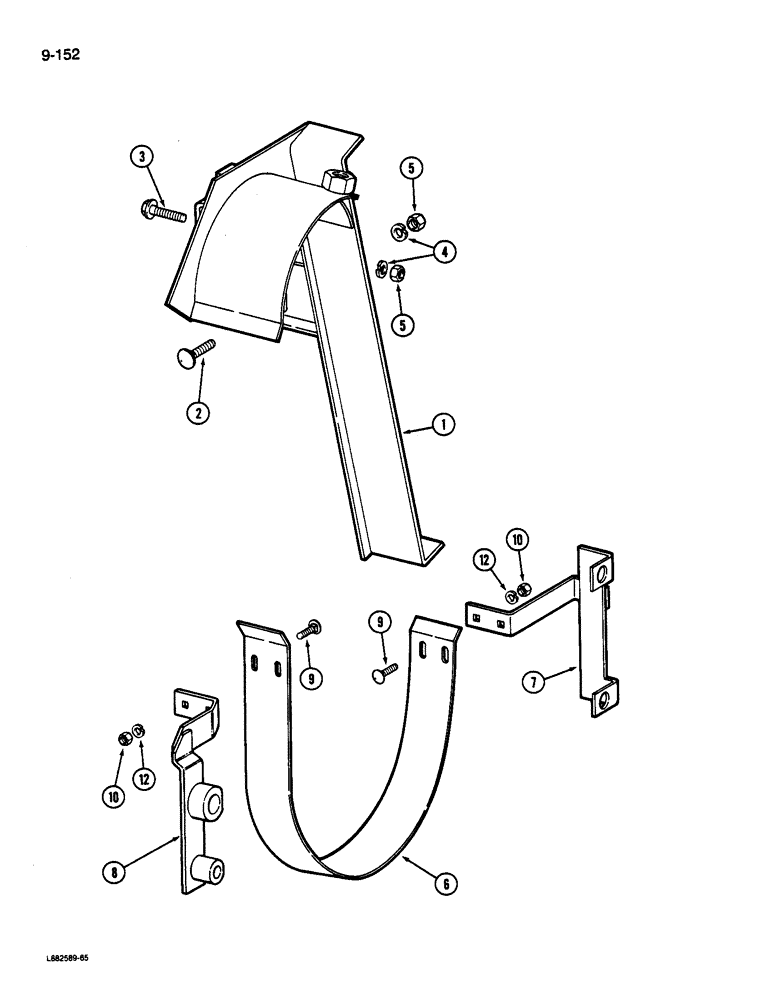

Запчасти Case IH 1822 (9-152) - FAN PULLEY GUARDS (15) - HANDLING SYSTEM

1

1329224C2

SHIELD

GUARD - fan pulley (Replaces 1278056C3 and 87242C1)

1шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

3

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 x 1-1/4 inch

1шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

120376

NUT,5/16"-18, G5

3шт.

6

1285477C1

GUARD

- fan pulley

1шт.

7

1285478C2

BRACKET

- guard, right

1шт.

8

1285481C4

BRACKET

- guard, left

1шт.

9

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

4шт.

10

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
