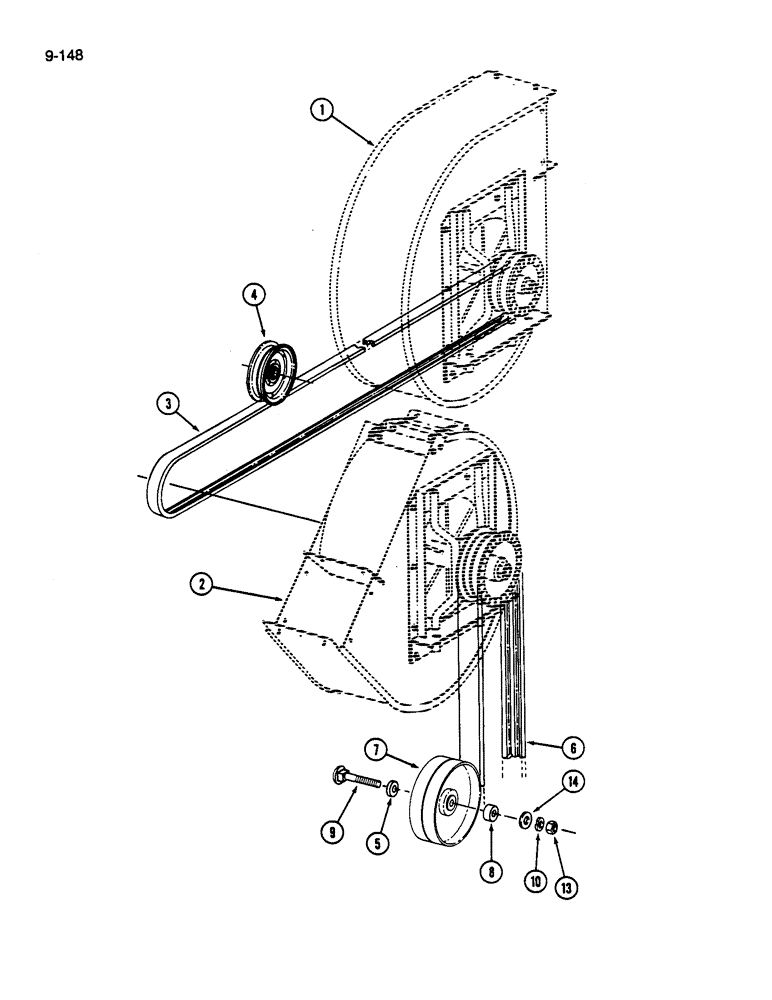

Запчасти Case IH 1822 (9-148) - FAN DRIVE (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

FAN ASSEMBLY - front (See Page 9-143)(See Note A)

1шт.

2

REF

INSTRUCTION

FAN ASSEMBLY - rear (See page 9-147)(See Note A)

1шт.

2

REF

INSTRUCTION

FAN ASSEMBLY - (See Page 9-141)(See Note B)

1шт.

3

1260258C1

BELT

- fan drive, middle, 46-13/16 inch (1 189 mm) on center (See Note A)

1шт.

4

219617C1

PULLEY

- idler, 5-3/4 inch (146 mm) diameter (See Note A)

1шт.

5

1278050C1

SPACER

- front idler pulley

1шт.

6

1288899C2

BELT

- fan drive, 68-29/32 inch (1 752 mm) diameter on center (See Note A)

1шт.

6

1288900C2

BELT

- fan drive, 68-5/64 inch (1 730 mm) diameter on center (See Note B)

1шт.

7

187388C91

PULLEY

- fan engage idler, 8 inch (203 mm) diameter (Replaces 87698C1)

1шт.

8

1278051C1

SPACER

- rear idler pulley

1шт.

9

598823R1

BOLT,Short NK, 5/8"-11 x 4", G5

- round head square neck, 5/8 NC x 4 inch

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

14

21220R1

WASHER

- flat, 29/32 x 1-1/4 x 7/64 inch NOTE A: 1844 Cotton Picker. NOTE B: 1822 Cotton Picker.

1шт.
