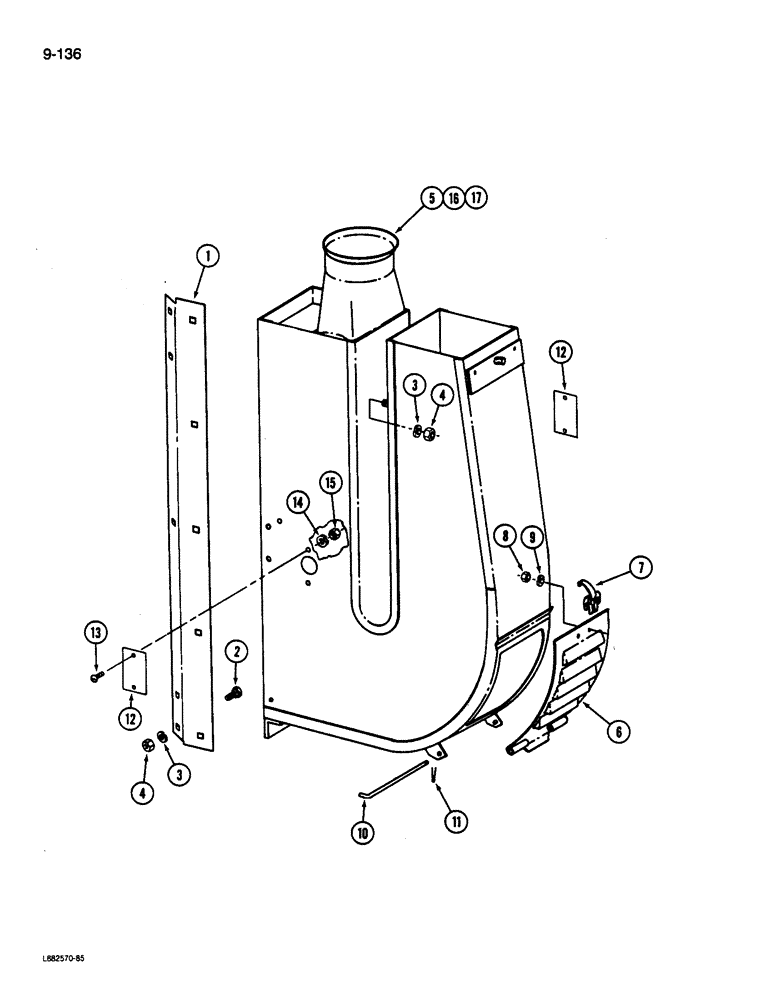

Запчасти Case IH 1822 (9-136) - OUTLETS (15) - HANDLING SYSTEM

1

1278490C4

ANGLE

- door adapter

2шт.

2

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

6шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

4

120377

NUT,3/8" - 16, Gr 5

10шт.

5

1278478C4

CHUTE ASSY.

DOOR ASSEMBLY

2шт.

6

1266308C1

DOOR

- access

2шт.

7

1333780C1

LATCH

- access door (Replaces 669184R1)

2шт.

8

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

216151C1

PIN

- hinge, access door

2шт.

11

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

12

87727C1

LARGE PLATE

PLATE - monitor cover

4шт.

1822 Cotton Picker only.

1шт.

13

937875R1

SCREW,Serr, 1/4" - 20

- truss head slotted, 1/4 x 3/4 inch

8шт.

1822 Cotton Picker only.

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

1822 Cotton Picker only.

1шт.

15

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

1822 Cotton Picker only.

1шт.

16

1338677C1

CHUTE ASSY.

DOOR - access, front left

1шт.

1822 Cotton Picker P.I.N. JJC0012001 and after. 1844 Cotton Picker P.I.N. JJC0002001 and after.

1шт.

17

1338678C1

CHUTE ASSY.

DOOR - access, front right

1шт.

1822 Cotton Picker P.I.N. JJC0012001 and after. 1844 Cotton Picker P.I.N. JJC0002001 and after.

1шт.
