Запчасти Case IH 1822 (9-134) - WATER PUMP, PULLEY, BELT, WATER VALVE SYSTEM (14) - WATER SYSTEM

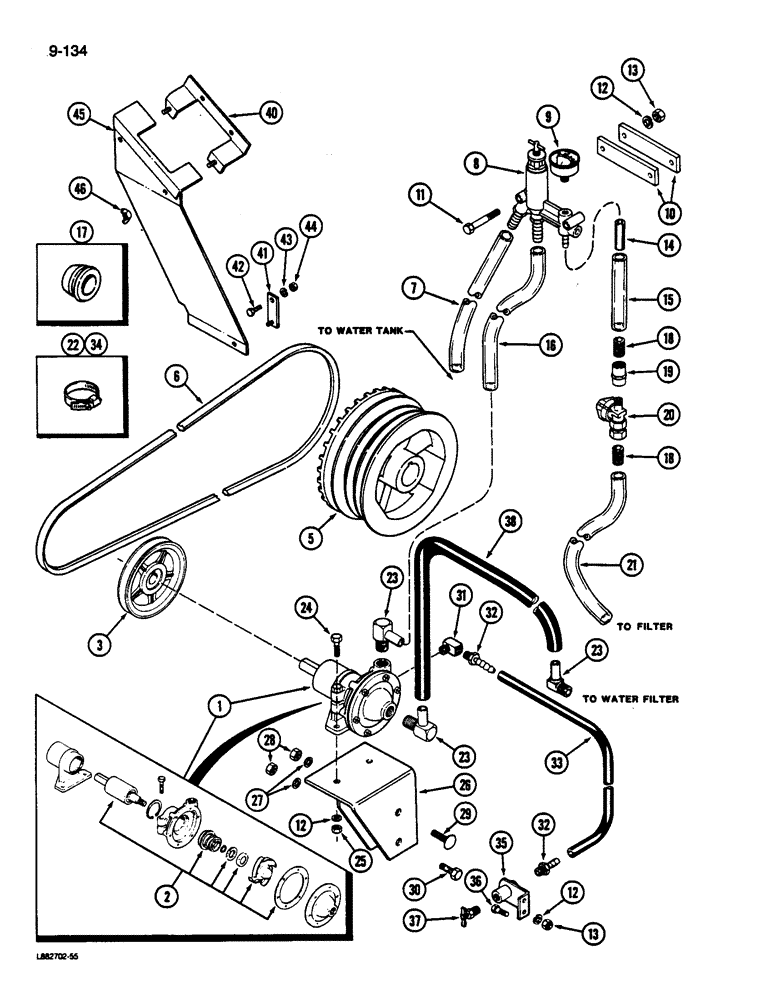

Схема запчастей Case IH 1822 - (9-134) - WATER PUMP, PULLEY, BELT, WATER VALVE SYSTEM (14) - WATER SYSTEM
10
23
15
38
1
36
33
43
11
34
18
46
23
41
40
19
17
44
13
12
7
20
35
12
24
26
2
21
23
45
32
27
42
28
6
16
14
13
32
9
37
8
29
5
25
22
31
3
12
18
30

Артикул

Название

Примечание

Количество

1

87030C1

PUMP, WATER

PUMP ASSEMBLY - water

1шт.

2

87463C1

SEAL PACKAGE

KIT - service, water pump

1шт.

3

87013C2

PULLEY

- water pump

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW - square head set, 5/16 NC x 3/4

1шт.

5

87012C2

PULLEY

- fan

1шт.

6

106465C1

V-BELT,51.94" L

-Pump Pulley to Fan Pulley 51.94" L

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 80 inch (2032 mm) (Order 665181R1 and cut to length)(1844 Cotton Picker

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 120 inch (3048 mm) (Order 665181R1 and cut to length)(1822 Cotton Picker

1шт.

8

87202C1

SHUT-OFF VALVE

VALVE ASSEMBLY - water regulator

1шт.

9

87203C1

GAUGE

- water pressure

1шт.

10

87210C1

LARGE PLATE

BAR - spacer valve

2шт.

11

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

13

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

14

NSS

NOT SOLD SEPARAT

HOSE - adapter, 2 inch (51 mm)(Order 87769C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE - 6 inch (153 mm)(Order 665181R1 and, Serial Range: cut-length)

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump to regulator valve, 160 inch (4064 mm) (Order 665181C1 and, Serial Range: cut-length)

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose

3шт.

18

129-419

WING NUT,5/16"-18

NIPPLE - pipe, 1/4 x 1 inch

2шт.

19

444096

COUPLING,1/4"-18, Brass

- pipe, 1/4-18 inch

1шт.

20

1339011C1

CHECK VALVE

VALVE ASSEMBLY - check, 10 PSI (Replaces 87682C1)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - regulator valve to water line tee, 100 inch (2540 mm) (Order 665181R1 and, Serial Range: cut-length)

1шт.

22

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose, No. 10 Type F

8шт.

23

57964R1

FITTING

ELBOW - 90 degree

3шт.

24

25483R1

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- hex, 1/4 NC x 1 inch, Grade 8

2шт.

25

25402R1

NUT

- hex, 1/4 NC inch, Grade 8

2шт.

26

87394C2

ANGLE

ASSEMBLY - pump mounting (Prior to P.I.N. 701)

1шт.

26

1339083C1

ANGLE BAR

ANGLE ASSEMBLY - pump mounting (P.I.N. 701 and after)

1шт.

27

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

28

120377

NUT,3/8" - 16, Gr 5

2шт.

29

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

29

441549R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

1шт.

30

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

31

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree street, 1/8-27 inch PT

1шт.

32

87521C1

ROD, CONNECTING

FITTING - 1/8 thread x 3/8 inch barb

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - water drain, 18 m (457 mm)(Order 87769C1 and, Serial Range: cut-length)

1шт.

34

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, water drain

2шт.

35

1329299C1

ANGLE

ASSEMBLY - drain

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

114981

VALVE

- drain cock, 1/8-27 inch pipe thread

1шт.

38

REF

INSTRUCTION

HOSE - pump to filter, 70 inch (1 778 mm)(Order 665181R1, Serial Range: cut-length)

1шт.

39

612233R1

SPACER,5/8" Tube x 1 1/8"

- pump mounting, 5/8 x 1-3/16 inch

2шт.

40

1339192C1

ANGLE BAR

BRACKET - cover mounting

1шт.

41

1339194C1

LARGE PLATE

PLATE - valve cover

1шт.

42

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

43

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

120376

NUT,5/16"-18, G5

1шт.

45

1339189C1

COVER

- water valve

1шт.

46

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

3шт.

Выбрано товаров: 49
