Запчасти Case IH 1822 (9-130) - QUICK FILL ATTACHMENT, 1822 COTTON PICKER (14) - WATER SYSTEM

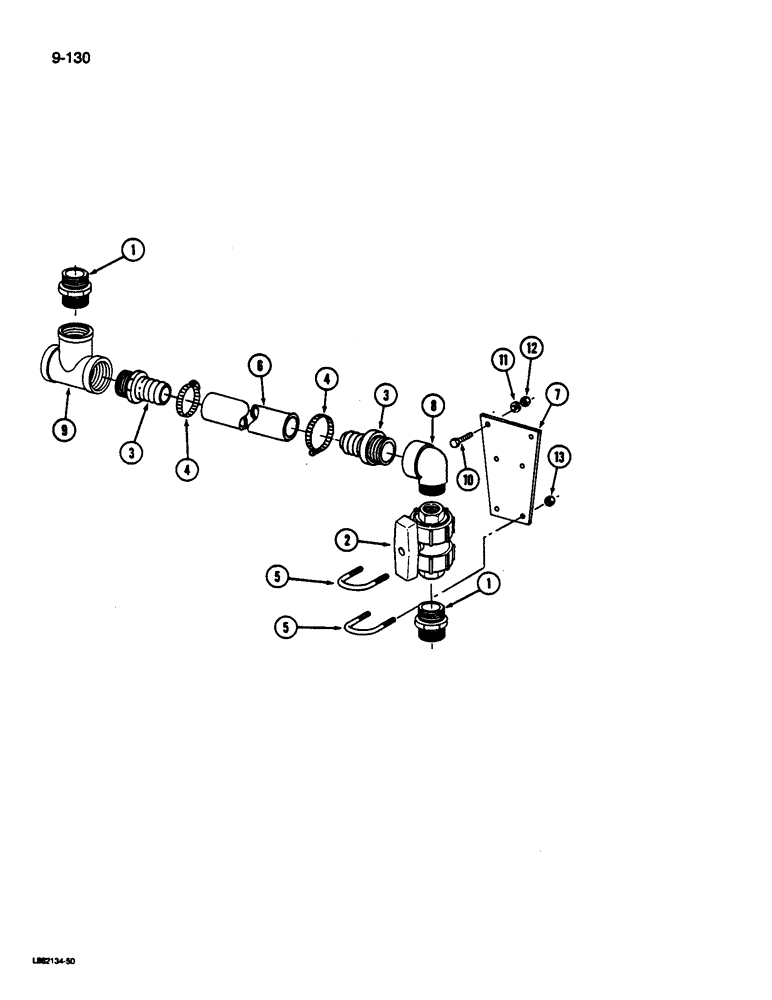

Схема запчастей Case IH 1822 - (9-130) - QUICK FILL ATTACHMENT, 1822 COTTON PICKER (14) - WATER SYSTEM
4
4
3
1
1
12
6
8
13
3
7
11
10
5
2
5
9

Артикул

Название

Примечание

Количество

1

1264070C1

FITTING

NIPPLE - 1-1/4 x 1-1/4 inch

2шт.

2

1954828C1

VALVE, CHECK

VALVE ASSEMBLY - water (Replaces 1264073C1)

1шт.

3

1264072C1

FITTING

- 1-1/4 x 1-1/2 inch

2шт.

4

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, No. 24, Type F

2шт.

5

87715C2

U-BOLT,U, 5/16" - 18 x 98mm

- water valve, 5/16 inch NC

2шт.

6

NSS

NOT SOLD SEPARAT

HOSE - water, 63 inch (Order 1264065C1 and, Serial Range: cut-length)

1шт.

1264065C1

HOSE

- 100 foot roll

1шт.

7

1270237C1

PLATE

- water valve support

1шт.

8

1264068C1

ELBOW

- 90 degree, 1-1/4 x 1-1/4 inch

1шт.

9

1264067C1

FITTING

TEE - connector, 1-1/4 inch

1шт.

10

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

11

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

120377

NUT,3/8" - 16, Gr 5

2шт.

13

120376

NUT,5/16"-18, G5

4шт.

Выбрано товаров: 14
