Запчасти Case IH 1822 (9-122) - WATER LINES, 1822 COTTON PICKER, P.I.N. 1501 AND AFTER (14) - WATER SYSTEM

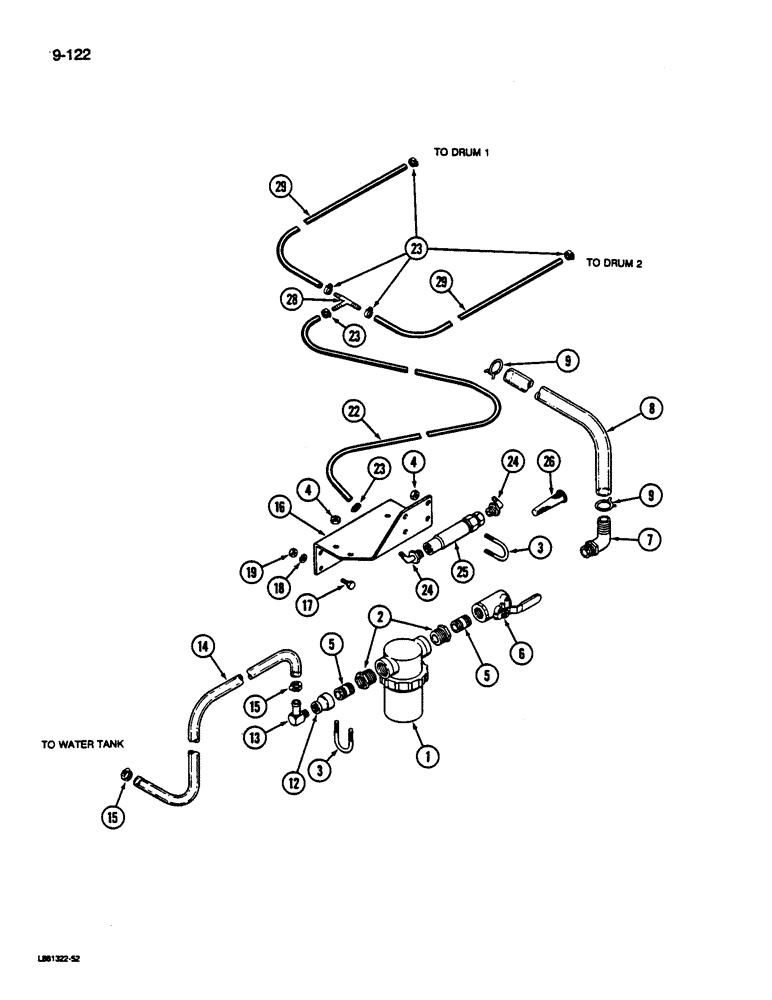

Схема запчастей Case IH 1822 - (9-122) - WATER LINES, 1822 COTTON PICKER, P.I.N. 1501 AND AFTER (14) - WATER SYSTEM
13
29
23
3
9
15
2
14
18
5
29
16
15
26
23
28
1
5
22
12
19
25
24
4
8
9
3
4
17
23
24
6
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FILTER ASSEMBLY - water (See Page 9-133)

1шт.

2

117219

ADAPTER,1" NPT Male x 3/4" NPT Fem

- 1 to 3/4 inch PT

2шт.

3

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- bracket retaining

4шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

8шт.

5

28771R1

PIPE,Nipple, 3/4" NPT x 1 3/8", Brass

NIPPLE - 3/4 x 1-3/8 inch PT

2шт.

6

222709C1

VALVE

ASSEMBLY - shutoff

1шт.

7

134271C1

ELBOW

- hose, 3/4 inch thread x 1 inch barb

1шт.

8

1266351C1

HOSE -, Serial Range: tank-valve

1шт.

9

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - hose retaining

2шт.

12

1338615C1

COUPLING

- 3/4 to 3/8 inch PT

1шт.

13

57964R1

FITTING

ELBOW - 90 degree

3шт.

14

NSS

NOT SOLD SEPARAT

HOSE - filter to pump, 80 inch long (Order 665181R1, Serial Range: cut-length)

1шт.

15

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose retaining

6шт.

16

1339172C1

BRACKET

- filter mounting

1шт.

17

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

18

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

19

120376

NUT,5/16"-18, G5

5шт.

22

NSS

NOT SOLD SEPARAT

HOSE - filter, 47 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

23

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Retaining #06, .44/.78 Type F Worm

12шт.

24

1339135C1

ELBOW

FITTING - barb, hose

2шт.

25

1339134C1

FILTER

- water, inline

1шт.

26

1339256C1

FILTER STRAINER

SCREEN - filter

1шт.

28

1339010C1

FITTING

TEE - barb, 3/8 inch

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 60 inch (Order 1338159C1, Serial Range: cut-length)

1шт.
