Запчасти Case IH 1822 (9-094) - DOOR AND COVER, 1822 COTTON PICKER (13) - PICKING SYSTEM

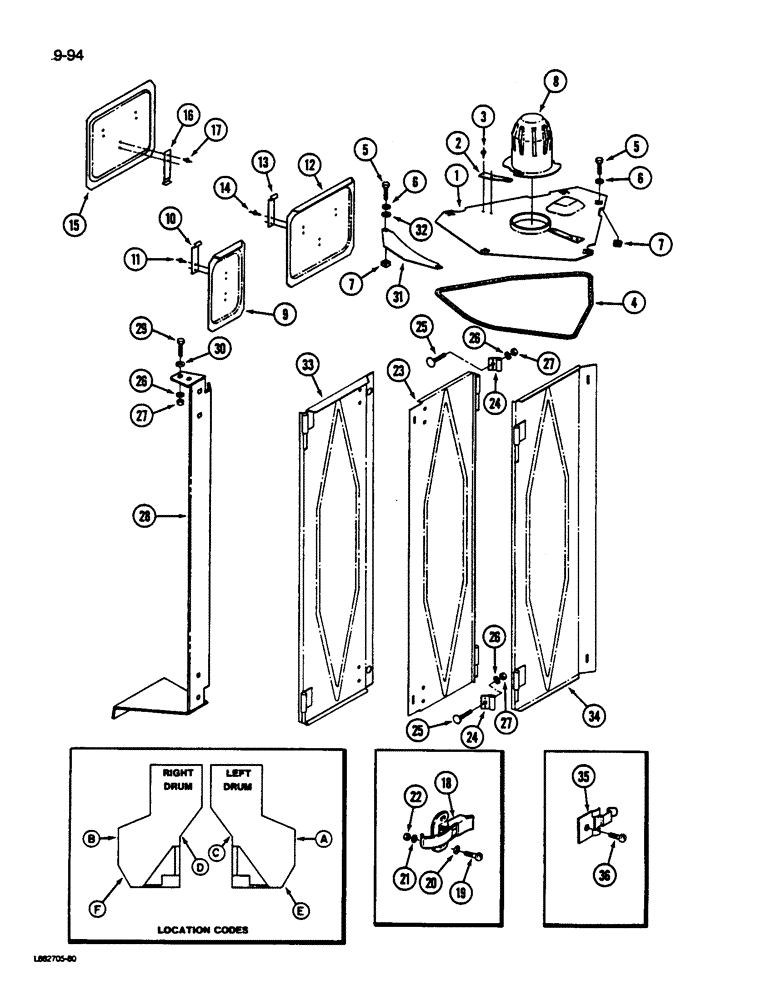

Схема запчастей Case IH 1822 - (9-094) - DOOR AND COVER, 1822 COTTON PICKER (13) - PICKING SYSTEM
1
14
6
5
24
27
26
33
34
27
7
30
28
19
5
13
8
15
26
29
18
6
23
3
20
11
27
24
12
7
10
25
4
35
17
32
22
21
26
16
36
2
25
9
31

Артикул

Название

Примечание

Количество

1

1278682C92

COVER ASSY

COVER ASSEMBLY - top

4шт.

2

1278684C1

CLIP

- cover

2шт.

3

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - cover. 49-1/2 inch (1 257 mm) from bulk roll marked 57554C1

1шт.

57554C1

SEAL

- foam, 200 feet (61 m) bulk roll

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

18шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

18шт.

7

673689R1

NUT

- speed, 1/4 inch NC

18шт.

8

1278685C1

COVER

- rotor

4шт.

9

223791

COVER ASSEMBLY - wrap, small

12шт.

10

223793C1

CLIP

- spring

2шт.

11

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

4шт.

12

223797C91

COVER

ASSEMBLY - wrap, large

2шт.

13

223793C1

CLIP

- spring

3шт.

14

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

6шт.

15

87636C91

COVER

ASSEMBLY - wrap, large

2шт.

16

223793C1

CLIP

- spring

3шт.

17

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

6шт.

18

1333780C1

LATCH

- door (Replaces 669184R1)

4шт.

19

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

- slotted, No. 10 x 1/2 inch

4шт.

20

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

21

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

22

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

23

1278819C2

DOOR

- drum, left (Location A)

1шт.

23

1278820C2

DOOR

- drum, right (Location B)

1шт.

24

1278818C2

HINGE

- door

12шт.

25

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

12шт.

26

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

27

120377

NUT,3/8" - 16, Gr 5

18шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

28

1278817C5

SUPPORT

- lower cover, left

2шт.

28

1266356C5

SUPPORT

- lower cover, right

2шт.

29

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch (Replaces 459401C1)

16шт.

30

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

8шт.

31

220182C1

LARGE PLATE

PLATE - access

4шт.

32

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

8шт.

33

1266321C3

SHIELD

- middle, left (Location C)

1шт.

33

1266322C3

SHIELD

- middle, right (Location D)

1шт.

34

1266324C2

SHIELD

- front, left (Location E)

1шт.

34

1266325C2

SHIELD

- front, right (Location F)

1шт.

35

167800C1

CLIP

CLIP - door

4шт.

36

449625

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - slotted, No. 10 x 5/8 inch tapping

4шт.

Выбрано товаров: 42
