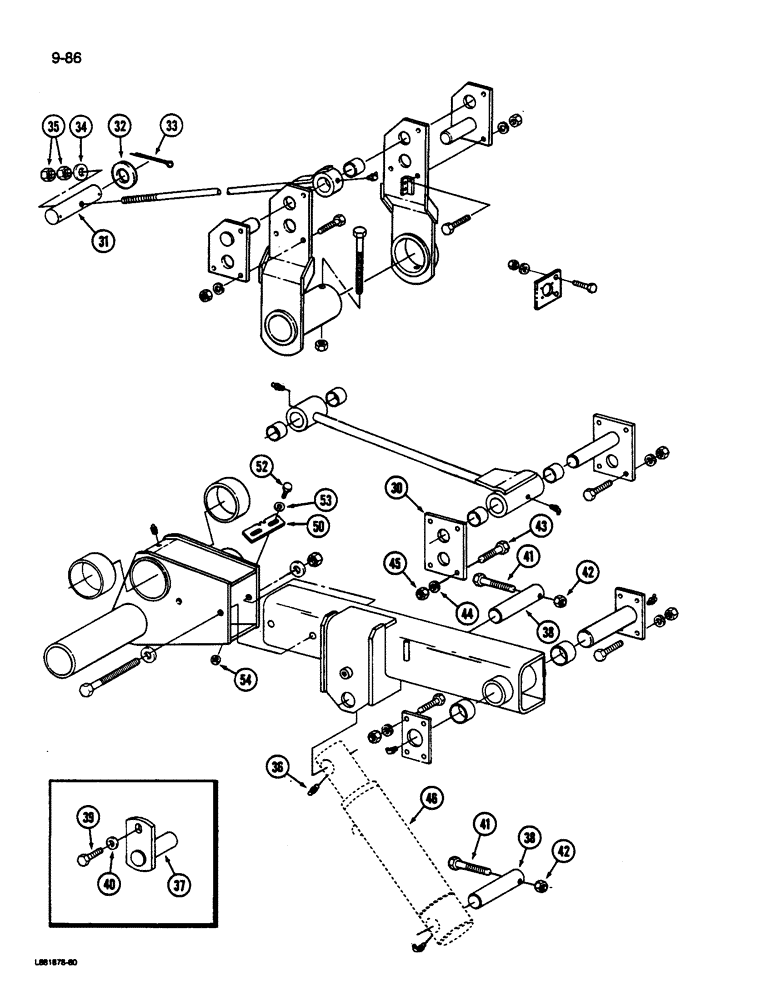

Запчасти Case IH 1822 (9-086) - DRUM LIFT ARM, 1822 COTTON PICKER (13) - PICKING SYSTEM

30

1278433C1

LARGE PLATE

PLATE - lower, pivot

2шт.

31

1278311C1

PIN

- lift

2шт.

32

21787R1

WASHER

- flat, 2-1/16 x 3/64 inch

4шт.

33

108659

PIN

- cotter, 5/16 x 2-3/4 inch

4шт.

34

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

- flat, 13/16 x 1-1/2 x 9/64 inch

2шт.

35

25529R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

4шт.

36

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT 1/8"-27 x .66 lg

1шт.

Not used with centralized chassis greasing system.

1шт.

37

1288949C1

PIN

- pivot (Prior to P.I.N. 701)

2шт.

38

1288567C3

PIVOT PIN

PIN - pivot

4шт.

P.I.N. 701 and after at upper position only.

1шт.

39

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch (Prior to P.I.N. 701)

2шт.

40

22191R1

WASHER

- flat, 17/32 x 1-3/4 x 11/64 inch (Prior to P.I.N. 701)

2шт.

41

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

42

9413956

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

4шт.

43

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

8шт.

44

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

45

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

46

REF

INSTRUCTION

CYLINDER - lift (See Page 8-41)

2шт.

50

1338020C1

LARGE PLATE

PLATE - adjusting, inner

2шт.

52

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

53

120390

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

54

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.
