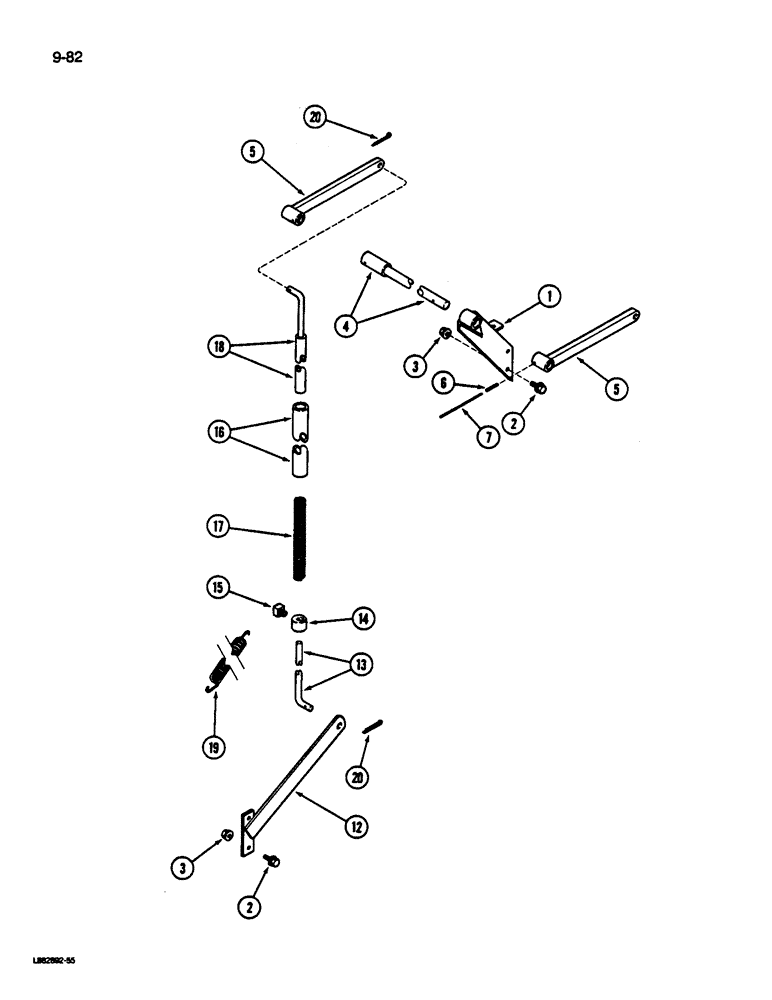

Запчасти Case IH 1822 (9-082) - OUTER PLANT LIFTER LINKAGE, AUTOMATIC HEIGHT CONTROL (13) - PICKING SYSTEM

1

1278828C3

PIVOT

ASSEMBLY - automatic height control, left

1шт.

1

1278893C3

PIVOT

ASSEMBLY - automatic height control, right

1шт.

2

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

6шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

6шт.

4

1339369C1

SHAFT ASSY.

SHAFT - height control expansion

2шт.

5

1278832C1

ARM ASSY.

ARM - height, long

2шт.

6

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

4шт.

7

1329485C2

ELECTRICAL WIRE

WIRE - pin retaining

4шт.

12

669045R91

BRACKET

- offset, left

1шт.

12

669046R91

BRACKET

- offset, right

1шт.

13

1278842C1

ROD

- push, lower

2шт.

14

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR - push rod lock

2шт.

15

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW - square head, set, 1/2 NC x 5/8 inch

1шт.

16

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

- spring cover

2шт.

17

523677R1

SPRING

- push rod

2шт.

18

670890R91

ROD

- push, upper

2шт.

19

655919R1

SPRING

- plant lifter

2шт.

20

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.
