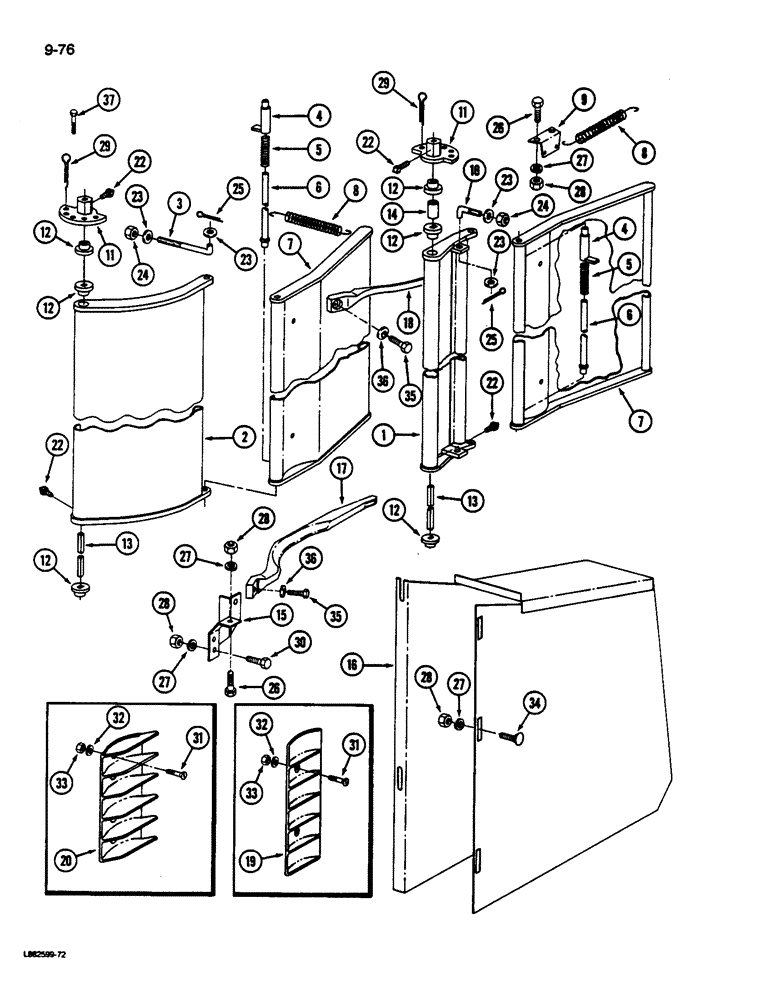

Запчасти Case IH 1822 (9-076) - PLANT COMPRESSOR (13) - PICKING SYSTEM

1

1278399C1

GUIDE

- plant, rear, left

1шт.

No. 2 and 4 drum on 1844 Cotton Picker, left drum on 1822 Cotton Picker.

1шт.

1

1266247C1

GUIDE

- plant, rear, right

1шт.

No. 1 and 3 drum on 1844 Cotton Picker, right drum on 1822 Cotton Picker.

1шт.

2

216527C1

GUIDE

- plant, front, right

1шт.

No. 1 and 3 drum on 1844 Cotton Picker, right drum on 1822 Cotton Picker.

1шт.

2

216526C1

GUIDE

- plant, front, left

1шт.

No. 2 and 4 drum on 1844 Cotton Picker, left drum on 1822 Cotton Picker.

1шт.

3

216607C1

ROD

- adjustment

2шт.

4

673851R2

STEM

ROD - extension

2шт.

5

10322R

SPRING

- rod

2шт.

6

220220C1

ROD

- hinge

2шт.

7

216532C1

GUIDE

EXTENSION - guide

2шт.

8

10310R

SPRING

- sheet

2шт.

9

1278578C1

BRACKET

- spring

1шт.

10

216543C1

ADJUSTMENT ROD

ROD - adjustment

2шт.

11

216542C1

HUB

- torsion

2шт.

12

216544C1

BUSHING

- guide

6шт.

13

216541C1

BAR

- torsion

2шт.

14

450492R1

SPACER,1/2" Pipe x 1"

- pipe, 1/2 x 1 inch

1шт.

15

1288844C1

BRACKET

- adjustment

2шт.

16

1278941C2

GUARD

SHIELD - plant, left

1шт.

No. 2 drum on 1844 Cotton Picker, left drum on 1822 Cotton Picker.

1шт.

16

1278942C2

GUARD

SHIELD - plant, right

1шт.

No. 3 drum on 1844 Cotton Picker, right drum on 1822 Cotton Picker.

1шт.

17

216828C2

GUIDE

SLAT - plant, left

17шт.

18

216829C2

GUIDE

SLAT - plant, right

17шт.

19

667386R1

LARGE PLATE

PLATE - compressor

6шт.

20

669576R1

LARGE PLATE

PLATE - compressor (Deep Rib)

6шт.

22

119504

- set, 1/4 NC x 1/2 inch

4шт.

23

NLS

NO LONGER SERVICED

- flat, 7/16 x 1 x 1/16 inch

8шт.

24

69981R1

LOCK NUT,3/8"-16, GB

NUT - hex, 3/8 inch NC

4шт.

25

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

26

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch (Replaces 459401C1)

3шт.

27

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

28

120377

NUT,3/8" - 16, Gr 5

8шт.

28

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

29

23266R1

PIN - cotter, 3/8 x 1-1/2 inch (If equipped)

2шт.

30

86965C1

BOLT

- hex, 3/8 NC x 3/4 inch

6шт.

31

216302

HYDRAULIC PUMP

- slotted, 1/4 NF x 5/8 inch

12шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

33

120367

NUT,Hex, 1/4" - 28, Gr 5

- hex, 1/4 inch NF

12шт.

34

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

3шт.

35

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

34шт.

36

87058C1

BELLEVILLE WASHER

- Belleville lock

34шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
