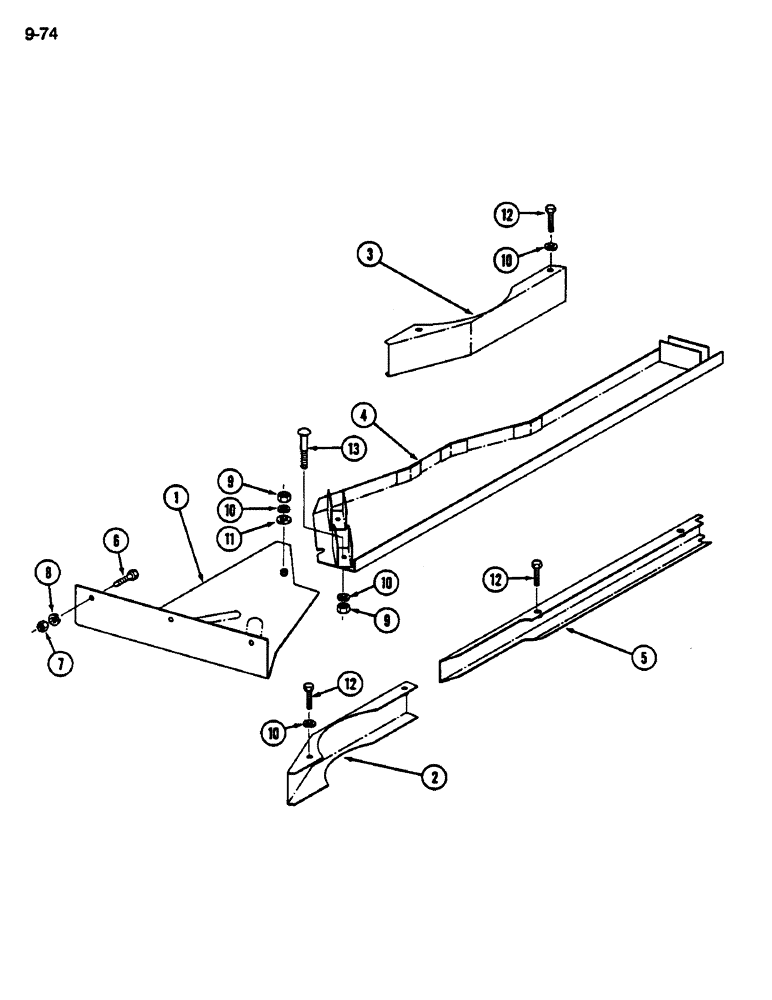

Запчасти Case IH 1822 (9-074) - THROAT SHEET (13) - PICKING SYSTEM

1

1278410C1

SUPPORT

- throat, left

1шт.

Number 2 and 4 drum on 1844 Cotton Picker left drum on 1822 Cotton Picker.

1шт.

1

1278411C1

SUPPORT ASSY.

SUPPORT - throat, right

1шт.

Number 1 and 3 drum on 1844 Cotton Picker right drum on 1822 Cotton Picker.

1шт.

2

1278419C1

SHEET ASSY.

SHEET - throat, left

1шт.

3

1278420C1

SHEET ASSY.

SHEET - throat, right

1шт.

4

1278406C1

KNIFE SECTION

SECTION - throat, left

1шт.

Number 2 and 4 drum on 1844 Cotton Picker left drum on 1822 Cotton Picker.

1шт.

4

1278407C1

KNIFE SECTION

SECTION - throat, right

1шт.

Number 1 and 3 drum on 1844 Cotton Picker right drum on 1822 Cotton Picker.

1шт.

5

1278425C1

SHEET ASSY.

SHEET - rear, left

1шт.

Number 2 and 4 drum on 1844 Cotton Picker left drum on 1822 Cotton Picker.

1шт.

5

1278426C1

SHEET ASSY.

SHEET - rear, right

1шт.

Number 1 and 3 drum on 1844 Cotton Picker right drum on 1822 Cotton Picker.

1шт.

6

86965C1

BOLT

- hex, 3/8 NC x 3/4 inch

1шт.

6

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

3шт.

7

120377

NUT,3/8" - 16, Gr 5

1шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

120376

NUT,5/16"-18, G5

1шт.

10

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

12

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

13

598807R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

BOLT - round head square neck, 5/16 NC x 2 inch

1шт.
