Запчасти Case IH 1822 (2-02) - ENGINE RADIATOR (01) - ENGINE

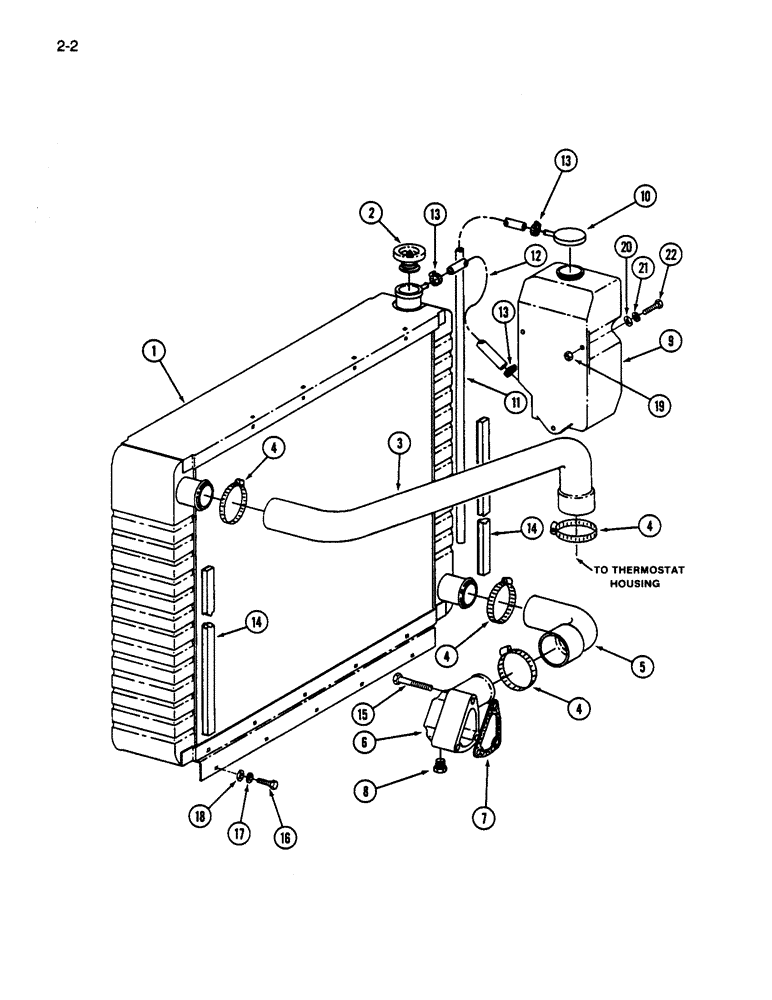

Схема запчастей Case IH 1822 - (2-02) - ENGINE RADIATOR (01) - ENGINE
9
17
21
10
7
6
16
8
20
4
5
18
3
1
15
4
13
14
14
12
13
22
19
13
4
4
2
11

Артикул

Название

Примечание

Количество

1

84357C1

RADIATOR

- cooling system

1шт.

2

130704C1

CAP

- radiator pressure, 10 PSI (Alternate with 121951C1)

1шт.

2

121951C1

CAP

- radiator pressure, 10 PSI (Alternate with 130704C1)

1шт.

3

1260055C2

RADIATOR HOSE,680.80 mm, SAE.20 R4 CLASS D-1

- Upper 680.80 mm, SAE.20 R4 CLASS D-1

1шт.

4

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - No. 36 shoe, Type F hose

4шт.

5

1260056C2

RADIATOR HOSE,61.00 mm ID, 50.80 mm ID x 189.8,173.0 mm, SAE 20 R4 CLASS D-1 EPDM Standard

- Lower 61.00 mm ID, 50.80 mm ID x 189.8,173.0 mm, SAE 20 R4 CLASS D-1 EPDM Standard

1шт.

6

1262475C1

ELBOW

- water pump inlet

1шт.

7

673396C1

GASKET

1шт.

8

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- pipe, 1/4-18

1шт.

9

437703C1

TANK

- reservoir expansion

1шт.

10

437702C1

CAP

- reservoir tank

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - reservoir, 38 inch (1 565 mm)(Cut from 87086C1, 50 foot roll)

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - reservoir to radiator, 16-1/2 inch (419 mm) (Order 87086C1, Serial Range: cut-length)

1шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

13

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

3шт.

14

NSS

NOT SOLD SEPARAT

SEAL - foam 26 inch (660 mm)(Order 87084C1, Serial Range: cut-length)

2шт.

87084C1

SEAL

- foam, 4 foot roll

1шт.

15

131-241

BOLT - 3/8 NC x 3 inch

3шт.

16

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

19

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

20

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

3шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

Выбрано товаров: 25
