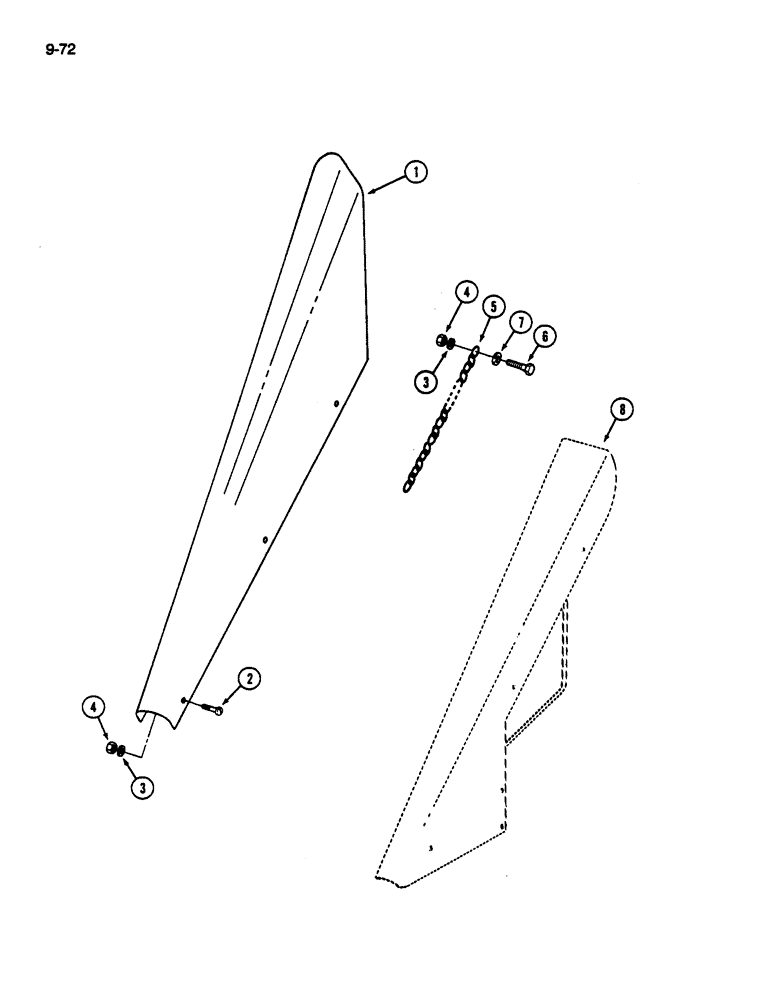

Запчасти Case IH 1822 (9-072) - PLANT LIFTER EXTENSION (13) - PICKING SYSTEM

1

87758C1

GUARD

SHIELD - body

1шт.

8 required for 1844 Cotton Picker. 4 required for 1822 Cotton Picker.

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

1шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

120376

NUT,5/16"-18, G5

1шт.

5

199217C2

CHAIN (AG)

CHAIN - lifter (See Note)

1шт.

8 required for 1844 Cotton Picker. 4 required for 1822 Cotton Picker.

1шт.

6

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

7

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 7/16 inch

1шт.

8

REF

INSTRUCTION

BODY - lifter (See Figure 9-70)

1шт.
